Rain/Light Recognition Sensor G397 , Removing and Installing

Rain/Light Recognition Sensor G397 , Removing And Installing







Removing
- Remove inside mirror.

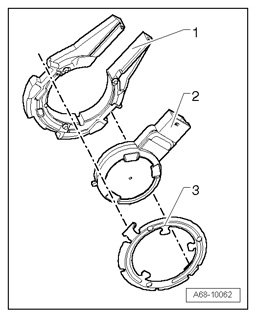

- Unclip retaining spring - 3 - from retaining plate - 1 -.
- Remove Rain/Light Recognition Sensor G397 - 2 - from retaining plate - 1 -.







Installing
Installation takes in reverse order of removal. Observe the following when doing so:
- Ensure that retaining spring - 3 - engages correctly in retaining plate - 1 -.
