Roof Panel Trim

Roof Panel Trim, Removing And Installing

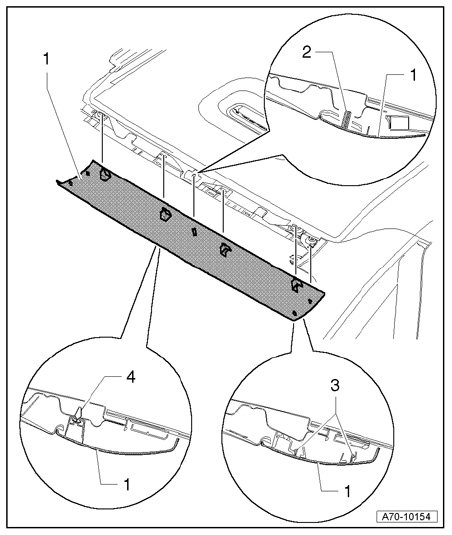

1 - Roof panel trim
- Removal
- Unclip roof panel trim - 1 - with clamps - 4 - (4x).
- To do this, push roof panel trim - 1 - downward.

When unclipping, do not damage catches - 3 - on roof panel trim - 1 - under any circumstances.

- Remove roof end trim - 1 -.

- Installing
- Check clamps - 4 - (4x) for damage and deformity.

Replace damaged or deformed clamps.

- Before installing roof panel trim - 1 -, make sure clamps - 4 - are positioned correctly.
- Position placement of roof panel trim - 1 - with pins - 2 -.
- Clip roof panel trim - 1 - in with clamps - 4 - (4x) and catches - 3 -.

Ensure roof panel trim - 1 - is held securely.

2 - Pins
- Joined securely with roof panel trim - 1 -
3 - Catches
- Joined securely with roof panel trim - 1 -
4 - Clamps, (4x)
- Replace if damaged or deformed
