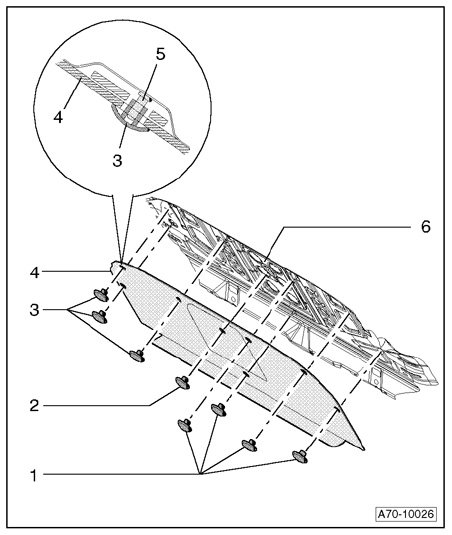

Rear Bulkhead Trim Panel on Vehicles With Fixed Rear Seat Backrest Assembly Overview

Rear Bulkhead Trim Panel On Vehicles With Fixed Rear Seat Backrest Assembly Overview







1 - Retaining clips
- Replace if damaged
2 - Retaining clip
- On vehicles without ski bag
- Replace if damaged
3 - Retaining clips
- Replace if damaged
4 - Rear bulkhead trim panel
5 - Threaded pin
- On partition panel
6 - Partition panel
- Between luggage compartment and passenger compartment
