Rear Lid Lock, Removing and Installing

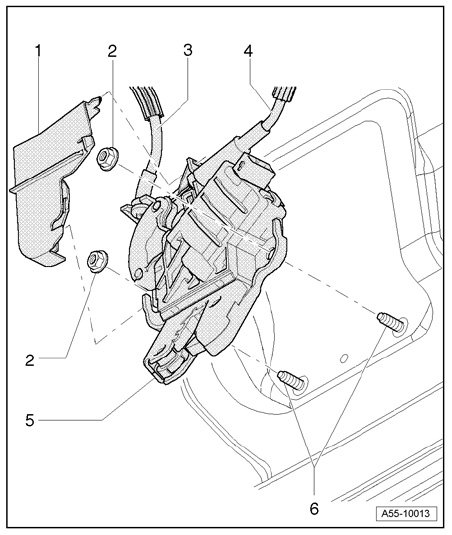

Rear Lid Lock, Removing And Installing







1 - Cover for rear lid lock
2 - Combination nut
- 8 Nm

3 - Rear lid lock release
- Disengaged at rear lid lock

4 - Emergency unlock release cable
- Not applicable to all vehicles (country versions).

5 - Rear lid lock
- Unclip cover - 1 - from lid lock.
- Remove combination screws - 2 -.
