Rear Lid Trim - Assembly Overview

Rear Lid Trim - Assembly Overview

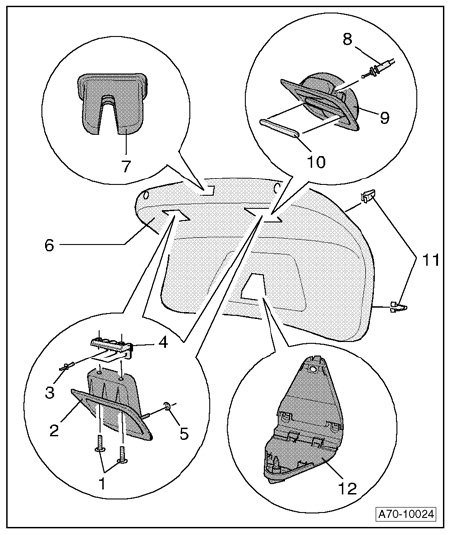

1 - Screw-1.8 Nm
- Qty. 2
2 - Handle recess
3 - Pop rivet
4 - Handle recess bracket
5 - Spring clamp
- Replace if damaged
6 - Rear lid trim
7 - Lock cover
8 - Luggage compartment emergency release actuating link
- Disengage
9 - Luggage compartment emergency release
- USA only
10 - Luggage compartment emergency release cover
11 - Spring clamp
- Replace if damaged
12 - Warning triangle bracket
