Body Controls - Falde DTC In Central Electronics Module
97 DTC in Electronic Central Electronics J519 after replacing Steering Column Electronics J52797 10 11
2018587/3
August 12, 2010

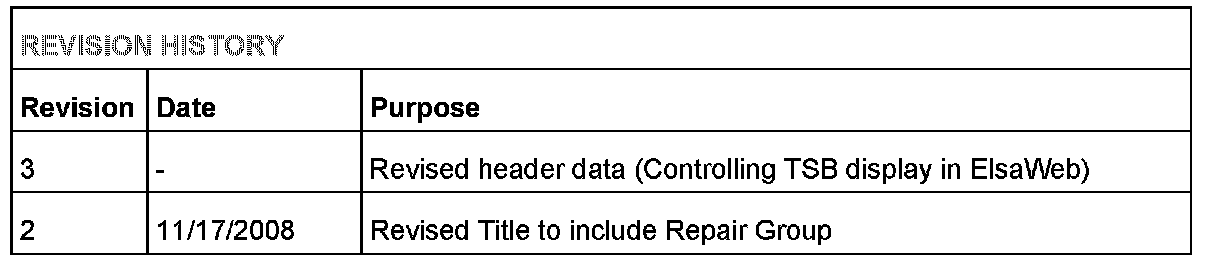

Supersedes Technical Service Bulletin Group 97 number 08-20 dated November 17, 2008 for reasons listed below.

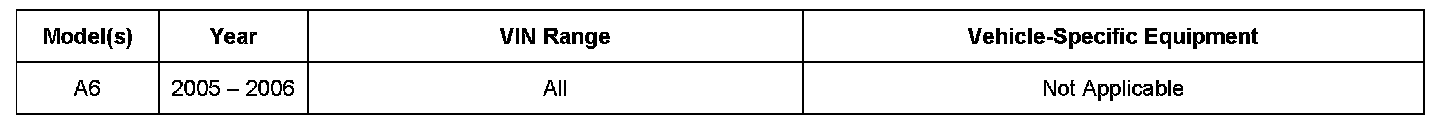

Affected Vehicles
CONDITION
After installing or replacing the electric steering column (J527), a DTC (Steering column adjustment incorrect, sporadic) is stored in the electronic central electrics module (J519).
TECHNICAL BACKGROUND
This unjustified entry is stored in J51 9 with software version < 0190 after the installation of a newer version - electric steering column. Root cause is the low current consumption of the regulator motors.
Tip: This DTC doesn't affect the function of the steering column adjustment.
PRODUCTION SOLUTION
Not applicable.
SERVICE
If it is determined that the software version of the electronic central electrics module is <0190, replace J519.
Tip: Ensure that an electronic central electrics module of at least SW Version 0190 is installed.

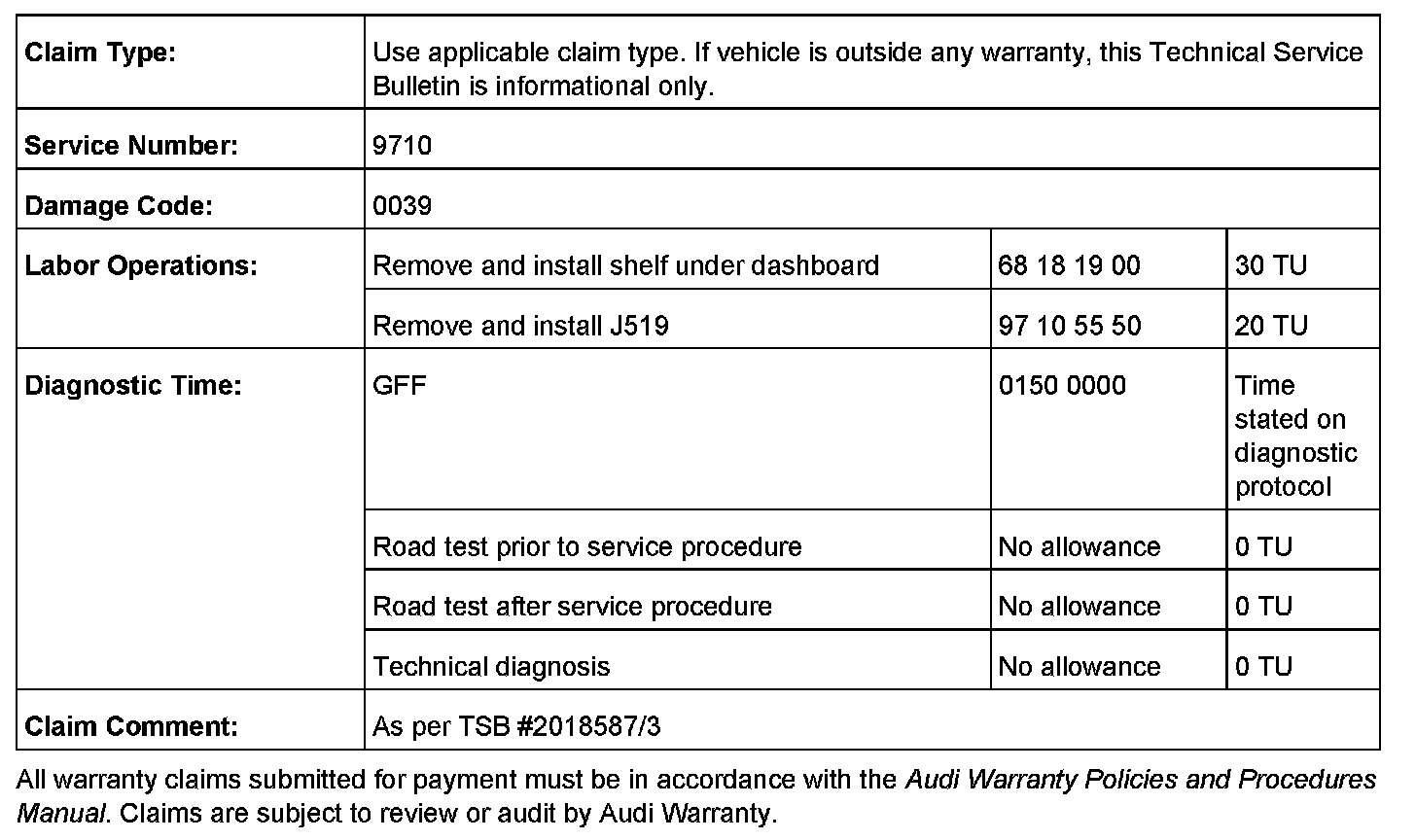

WARRANTY
ADDITIONAL INFORMATION
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
