Trailer Hitch Socket, Version 2

Trailer Hitch Socket, Version 2

Removing





• During installation, install the cable ties at the same location.

- Turn off the ignition and remove ignition key.

- Unfold and engage the trailer hitch.

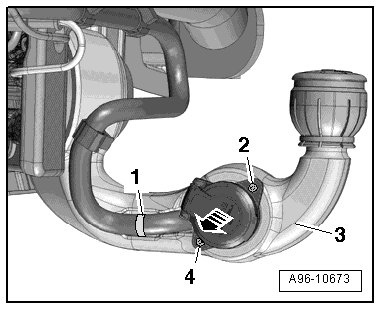

- Cut the cable ties - 1 - and remove the screws - 2 and 4 -.

- Press the socket out of the trailer hitch - 3 - in the - direction of the arrow -.

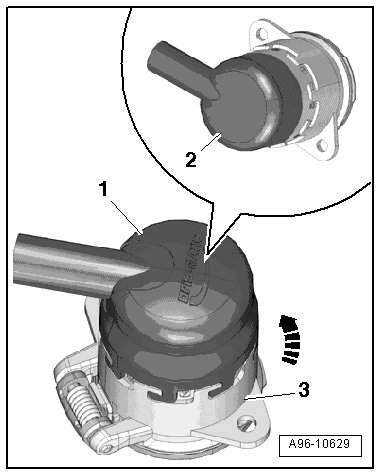

- Turn the cap - 1 - counterclockwise - arrow - and remove it from the socket - 3 -.





- Remove the rubber cover - 2 -.

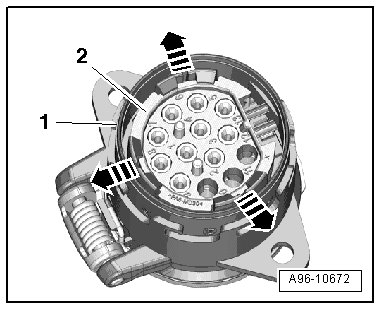

- Release the retaining clips - arrows - and press the multiple connector - 2 - out of the socket - 1 -.

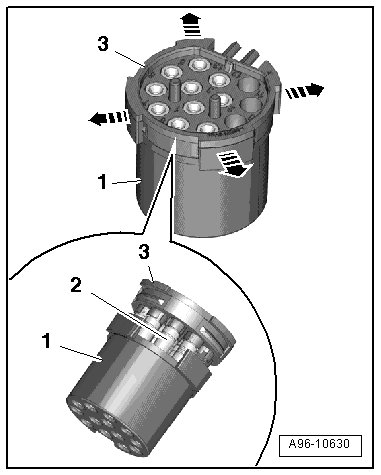

- Release the retaining clips - arrows - and remove the retainer - 1 - from the multiple connector - 3 -.





• Carefully remove the retainer so that the contacts - 2 - of the multiple connector are not disconnected from the wiring harness.

Installing





Install in reverse order of removal, observing the following:

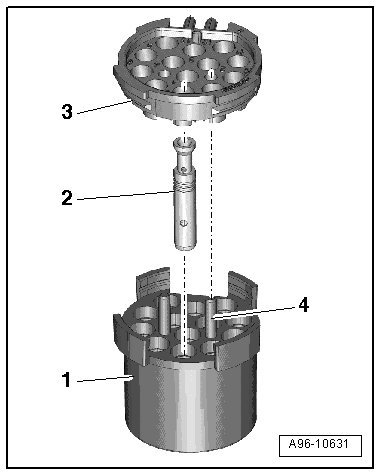

- The retainer - 1 - can be pushed onto the multiple connector - 3 - in only one position.

• Guide pins - 4 - can be inserted into the retainer in only one position. Contacts - 2 - must be inserted in the retainer for this purpose.

- Insert the retainer into the multiple connector until it engages audibly.
