Rear Door Window Regulator: Locations

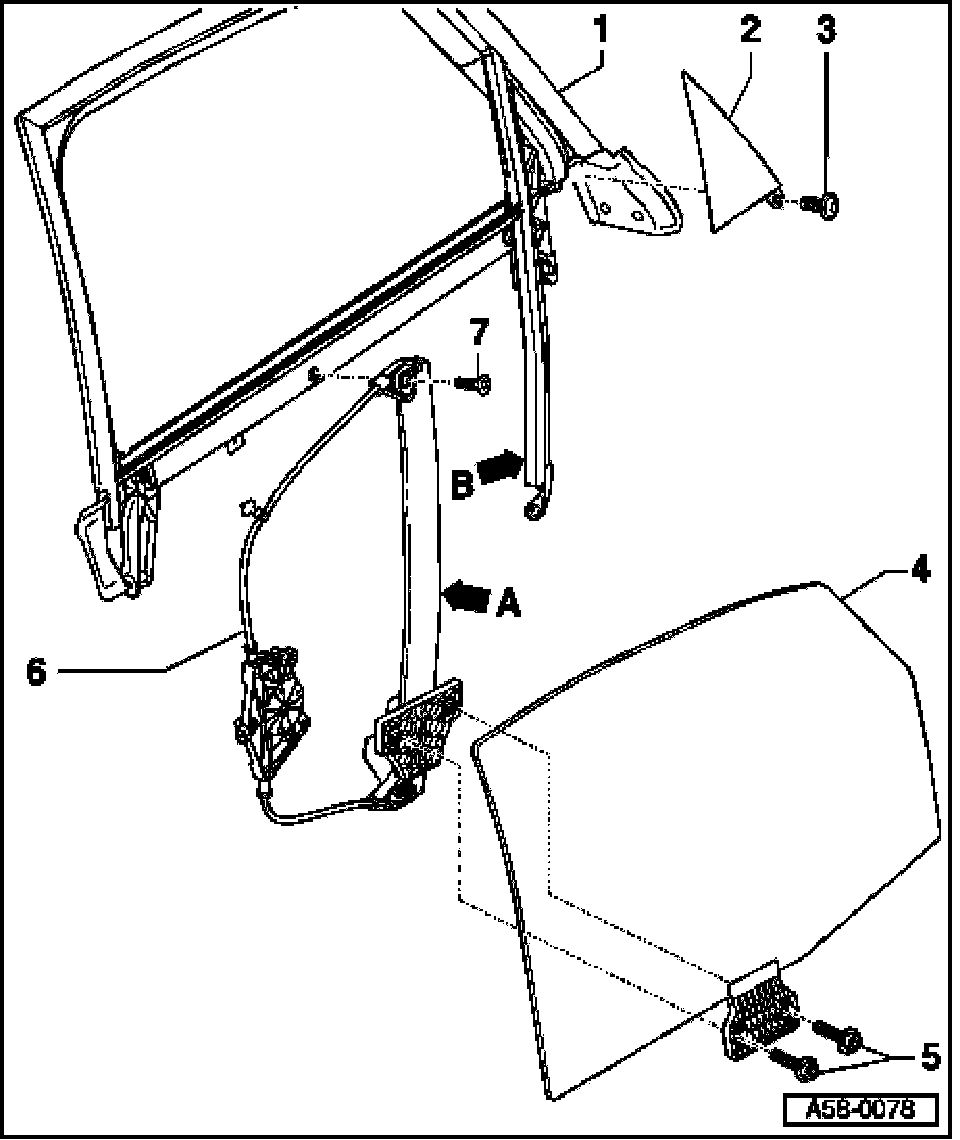

Window Lifter And Door Window, Assembly Overview
1 - Window frame
2 - Triangular cover
3 - Countersunk head bolt
- 5 Nm
4 - Door window
5 - Hex socket-head bolt
- 4 Nm - 0.5 Nm
6 - Window lifter
Window Lifter And Door Window, Assembly Overview
1 - Window frame
2 - Triangular cover
3 - Countersunk head bolt
- 5 Nm
4 - Door window
5 - Hex socket-head bolt
- 4 Nm - 0.5 Nm
6 - Window lifter
