Drive Plate, Removing and Installing

Drive plate (vehicles with automatic transmission), removing and installing

Special tools, testers and auxiliary items required





^ Counter-holder tool 10-201

Removing
- Remove automatic transmission.





- Insert counter hold tool 10-201 to loosen bolts.
- Mark drive plate to engine.
- Remove drive plate.
- Remove centering washer from behind it.

Installing
Installation is in reverse order of removal, note the following:





- Install drive plate with centering washer - arrow - and backing plate.
- Use new bolts when securing.
- Turn over counter hold tool 10-201 to tighten bolts.
- Install automatic transmission.

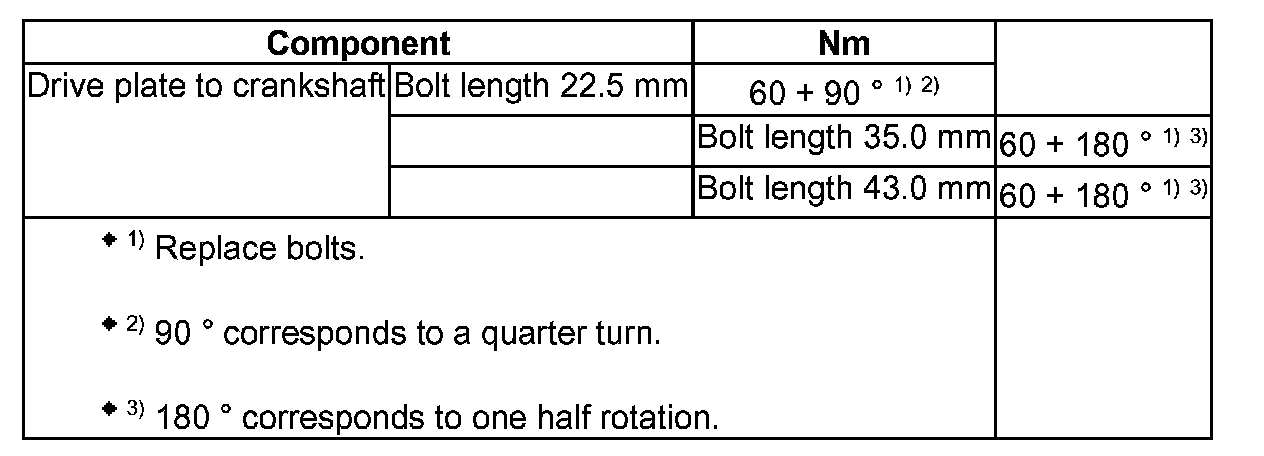

Torque specifications
