Collision Avoidance - False Warning With Lane Change

96 08 21

2019481/1

December 11, 2008

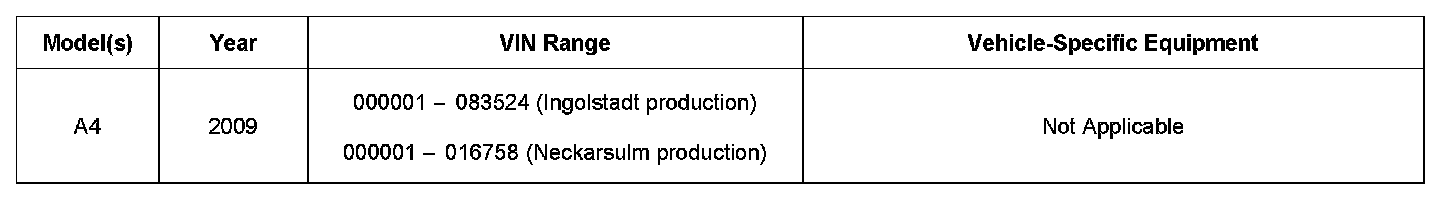

Affected Vehicles

96 False warning by lane change assistant when driving over 62 mph

Condition

False warning from the lane changing assistant at speeds over 62 mph.

Technical Background

Software fault.

Production Solution

Optimized software.

Service

Replacement of the control unit is not necessary. Warranty claims for control unit replacements without use and application of this TSB will be debited.

SVM Update Instructions

1. Check the software version of the lane changing assistant. If software version 40 is installed, update it to version 50. The action code for this update is 8K3CA001.





2. Follow all instructions in the attached TSB 2011732 00 Software Version Management (SVM), operating instructions.

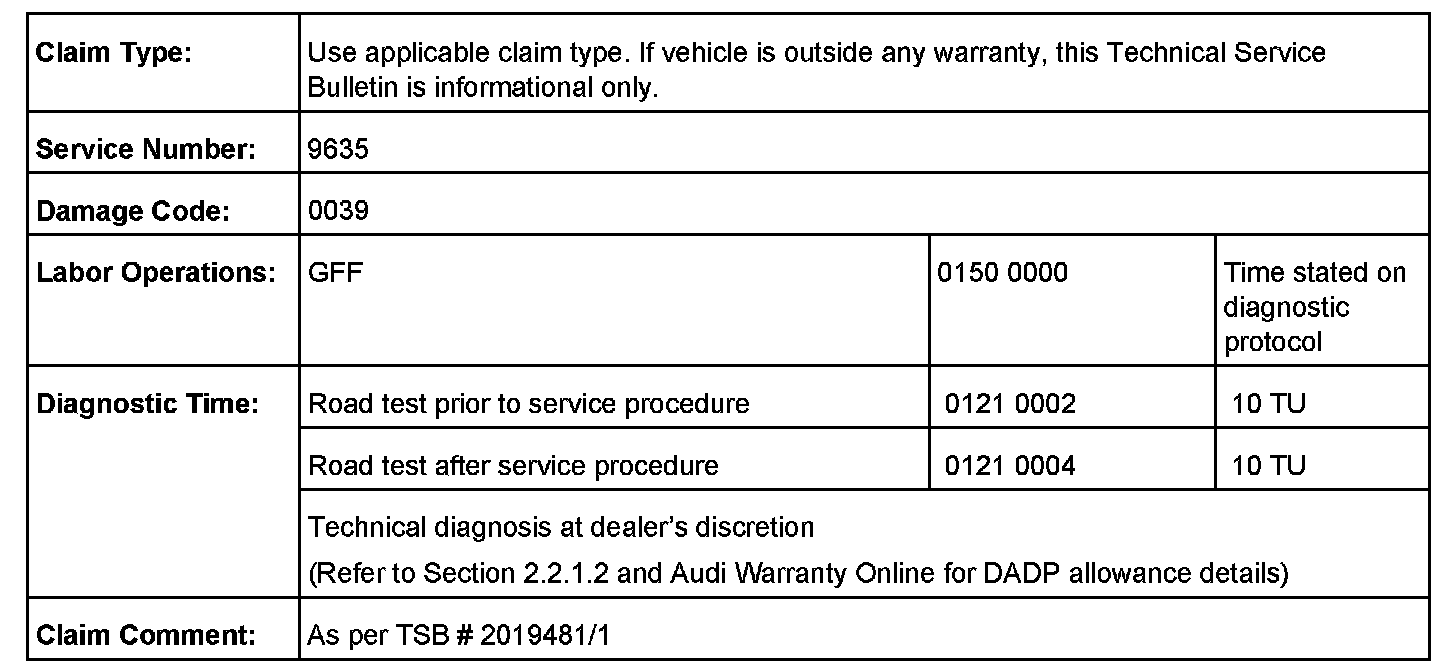

Warranty

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

Additional Information

The following Technical Service Bulletin will be necessary to complete this procedure:

- TSB 2011732 00 Software Version Management (SVM), operating Instructions.

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
