Power Steering System Assembly Overview

Power Steering System Assembly Overview

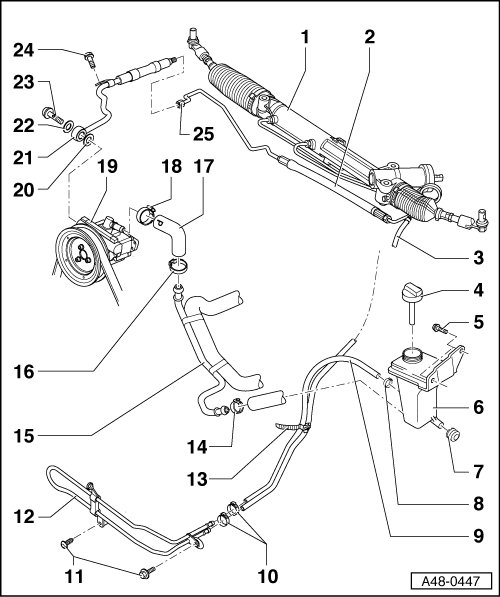

1 - Power-assisted steering gear

2 - Extension hose

3 - Return hose

4 - Cap with dip stick

• Check fluid level, refer to => [ Power Steering, Checking Fluid Level ] Testing and Inspection

5 - Hex bolt, 9 Nm

6 - Reservoir

• Refilling with hydraulic oil,

7 - Rubber bushing

8 - Clamp

• Tension using (V.A.G 1275)

• Always replace

9 - Return hose

• Between reservoir and cooling line

10 - Clamp

• Tension using (V.A.G 1275)

• Always replace

11 - Hex bolt, 10 Nm

12 - Cooling line

13 - Cable tie

14 - Clamp

• Tension using (V.A.G 1275)

• Always replace

15 - Intake hose

• Installed position, refer to => [ Power Steering System Assembly Overview ] Power Steering System Assembly Overview

16 - Clamp

• Tension using (V.A.G 1275)

• Always replace

17 - Intake hose

• Installed position, refer to => [ Power Steering System Assembly Overview ] Power Steering System Assembly Overview

18 - Clamp

• Tension using (V.A.G 1275)

• Always replace

19 - Power steering pump

• Fill with oil before installing, refer to => [ Power Steering System Assembly Overview ] Power Steering System Assembly Overview

20 - Seal

• Always replace

21 - Extension hose

22 - Seal

• Always replace

23 - Banjo bolt, 50 Nm

24 - Hex bolt, 8 Nm

25 - Extension hose connection, 40 Nm
