Seat Belts

Rear Seat Child Seat Anchorage, Sedan

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)





• Mounts for 3 child seat anchorages can be installed.

- Remove the rear shelf. Refer to => [ Rear Shelf ] Trim.

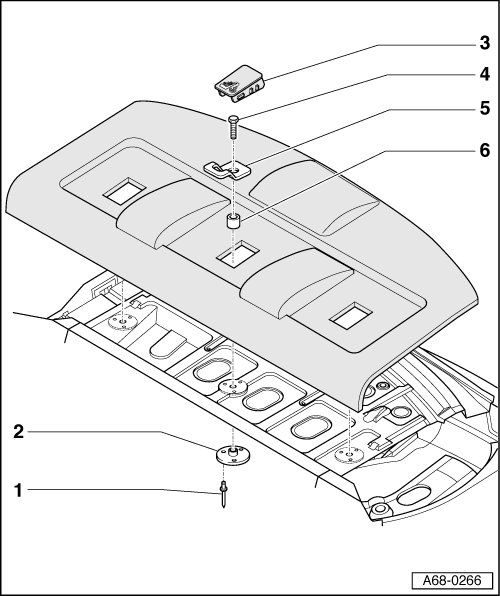

1 Pop Rivet

• Qty. 3 per plate

• for securing threaded washer - 2 - to plate

• The threaded plate must always be installed from below (luggage compartment side)

2 Threaded Plate

• Threaded insert points upward

3 Cap

• To install, position rear and press front down (symbol faces toward front).

4 Bolt

• Tightening specification 23 Nm

5 Anchorage

6 Spacer Sleeve
