Coolant Line/Hose: Locations

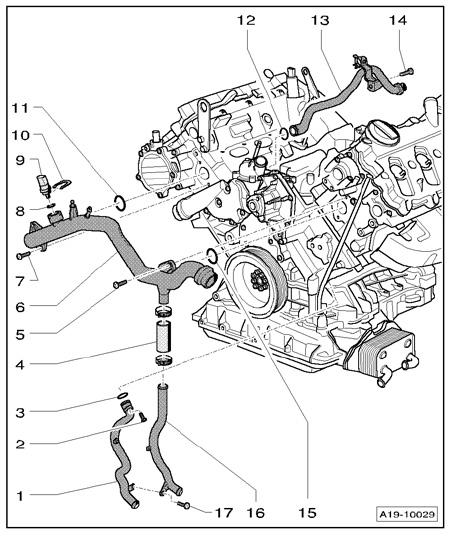

Coolant pipes, component overview





1 - Left coolant line
2 - 9 Nm
3 - O-ring
^ Replace

4 - Connecting hose
5 - 9 Nm
6 - Front coolant line
7 - 9 Nm
8 - O-ring
^ Replace

9 - Engine Coolant Temperature (ECT) Sensor G62
10 - Retaining clip
11 - Seal
^ Replace

12 - O-ring
^ Replace

13 - Upper coolant line
14 - 9 Nm
15 - Seal
^ Replace

16 - Left coolant line
17 - 9 Nm
