Balance Shaft: Locations

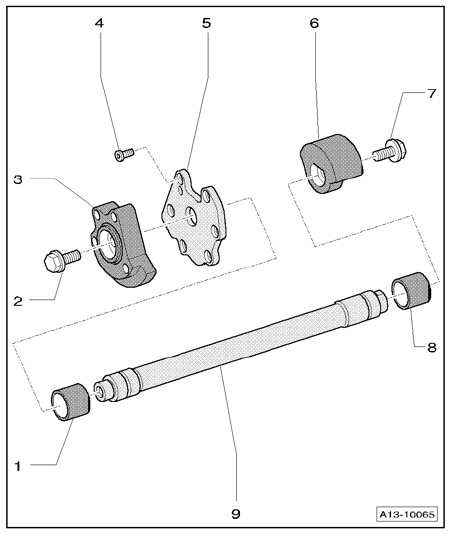

Balance shaft, component overview





1 - Friction bearing
2 - 60 Nm
^ To loosen and fasten, use a 8 mm dia. drill bit as counter-holder

3 - Balance weight (timing chain side)
^ Can only be positioned one way on balance shaft

4 - 9 Nm
5 - Bearing end bracket
6 - Balance weight (belt pulley side)
^ Can only be positioned one way on balance shaft

7 - 60 Nm
^ To loosen and fasten, use a 8 mm dia. drill bit as counter-holder

8 - Friction bearing
9 - Differential shaft
