Intake Manifold Upper-Part, Component Overview

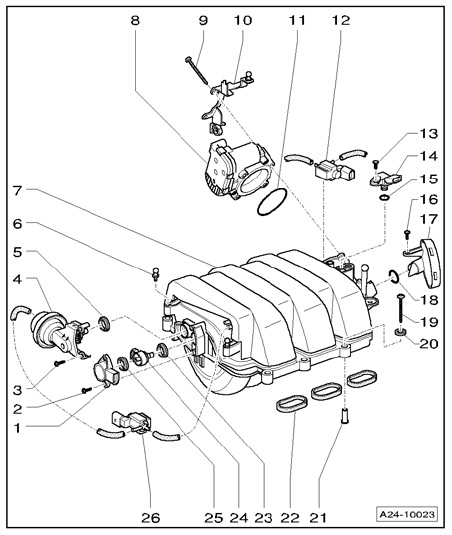

Intake Manifold Upper-part, Component Overview







1 - Intake Manifold Tuning (IMT) Valve Position Sensor G513
2 - 2.5 Nm
3 - 2.5 Nm
4 - Actuator for intake manifold change-over
- Installed location of tooth segments for variable intake manifold
- As replacement part together with - 24 -
5 - Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
6 - Ball pin, 2.5 Nm
7 - Intake manifold upper part
8 - Throttle valve control module J338
9 - 5 Nm
10 - Wire harness retainer
11 - Seal
12 - Intake Manifold Runner Control (IMRC) Valve N316
13 - 2.5 Nm
14 - Intake Air Temperature (IAT) Sensor G42 / Manifold Absolute Pressure (MAP) Sensor G71
15 - O-ring
16 - 2.5 Nm
17 - Crankcase housing ventilation pressure regulator valve
18 - O-ring
19 - 6 Nm
20 - Washer
21 - Sleeve
22 - Seals
23 - Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
24 - Lever with tooth segment
- For variable intake manifold
- Installed location of tooth segments
- As replacement part together with - 4 -
25 - Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
26 - Change-over valve for intake manifold flap N239







Installed location of tooth segments for variable intake manifold
- The lower edges of tooth segments must be flush with one another - arrows -.
