Power Take-Off Drive Chain, Through 04.06 Component Overview

Power Take-Off Drive Chain, through 04.06 Component Overview

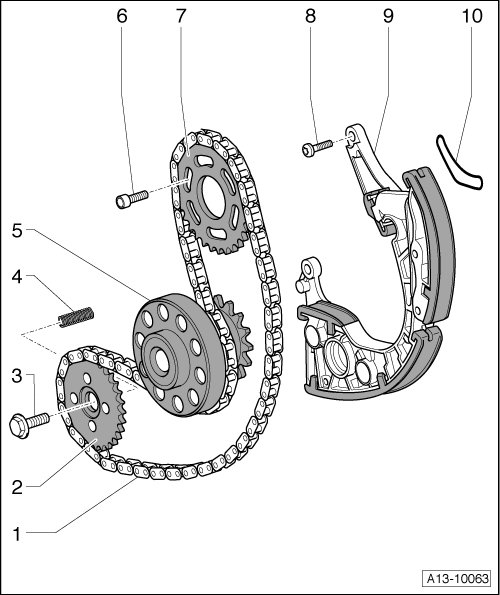

1 Power take-off drive chain

• Before removing, mark direction of rotation with paint

• Removing and installing, refer to => [ Power Take-Off Drive Chain, through 04.06 ] Power Take-Off Drive Chain, Through 04.06

2 Drive sprocket for oil pump

• Installation position: Labeled side faces engine

3 30 Nm plus an additional 90° (1/4 turn)

• Replace

4 Spring

5 Crankshaft

6 15 Nm plus an additional 90° (1/4 turn)

• Replace

7 Chain sprocket for balance shaft

• Installation position: Labeled side faces transmission

8 6 Nm plus an additional 45° (1/8 turn)

• Replace

9 Chain tensioner

• With glide track

10 Gasket

• Depending on version

• Replace
