Vacuum Pump: Locations

Assembly overview

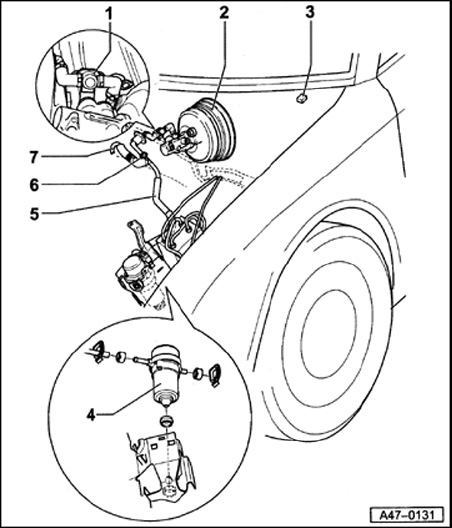

Assembly Overview:

1 - Brake booster pressure sensor G294

2 - Brake booster

3 - Brake booster relay J569

4 - Vacuum pump for brakes V192

5 - Vacuum hose

6 - Check valve

7 - Vacuum hose
^ To engine
