Rear Wheel Spoiler

Rear Wheel Spoiler

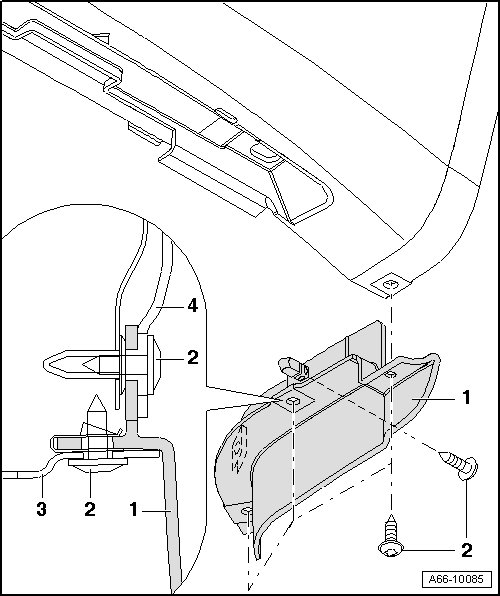

1 Rear wheel spoiler

• When installing, rear wheel spoiler must be slide under wheel housing liner or under underbody trim as shown.

2 Screw

• 3 Nm

3 Underbody trim

4 Rear wheel housing liner
