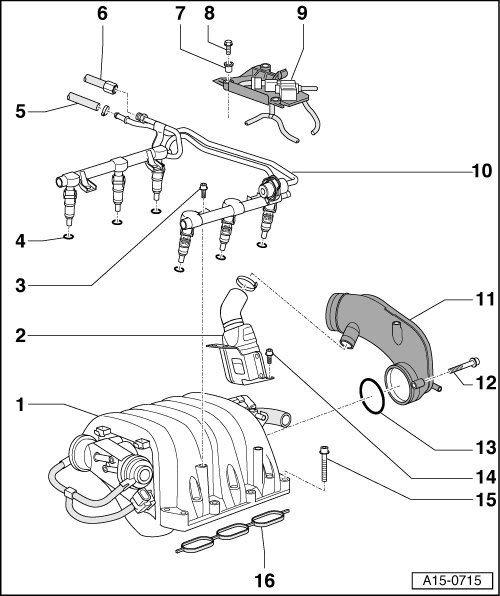

Intake Manifold Component Overview

Intake Manifold Component Overview





1 Intake manifold

• Removing and installing, refer to => [ Intake Manifold ] Intake Manifold

2 Resonator

3 10 Nm

4 O-rings

• Replace

5 Fuel return line

• Not on vehicles with fuel system without return line

• Do not open threaded connection to remove intake manifold

6 Fuel supply line

• Do not open threaded connection to remove intake manifold

7 Bushing

8 10 Nm

9 Retaining plate

• For solenoid valve

10 Fuel rail

11 Air duct

12 10 Nm

13 O-ring

• Replace

14 10 Nm

15 10 Nm

• Tighten in diagonal sequence in steps

16 Gasket

• For intake manifold

• Replace
