Center Instrument Panel Vent, Removing and Installing

Center Instrument Panel Vent, Removing And Installing

- Remove glove box
- Instrument panel piece trim, removing


NOTE:

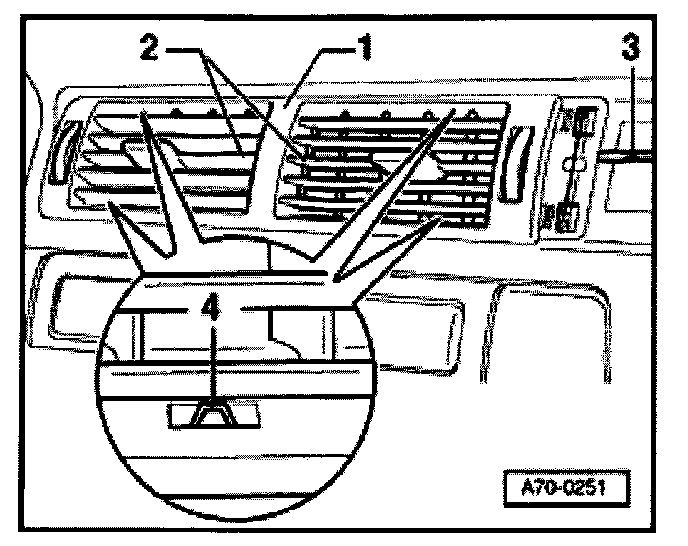

The instrument panel vent -1- is fastened via clips -4- in the instrument panel.


- Open vents -2-.







- Insert special tool -A- in instrument panel vent and turn to disengage upper retainers.
- Use screwdriver -B- to prevent upper retainers from engaging again.


NOTE: If the lower retainers cannot be loosened from the front:
-- Remove entire center section of instrument panel and also reinforcement bracket.
-- Remove storage compartment on driver's side.







-- Disengage lower retainer using screwdriver -C-.







- Remove vent from instrument panel from front using screwdriver -3-.
