Air Ducts In Vehicle Interior

Air Ducts In Vehicle Interior

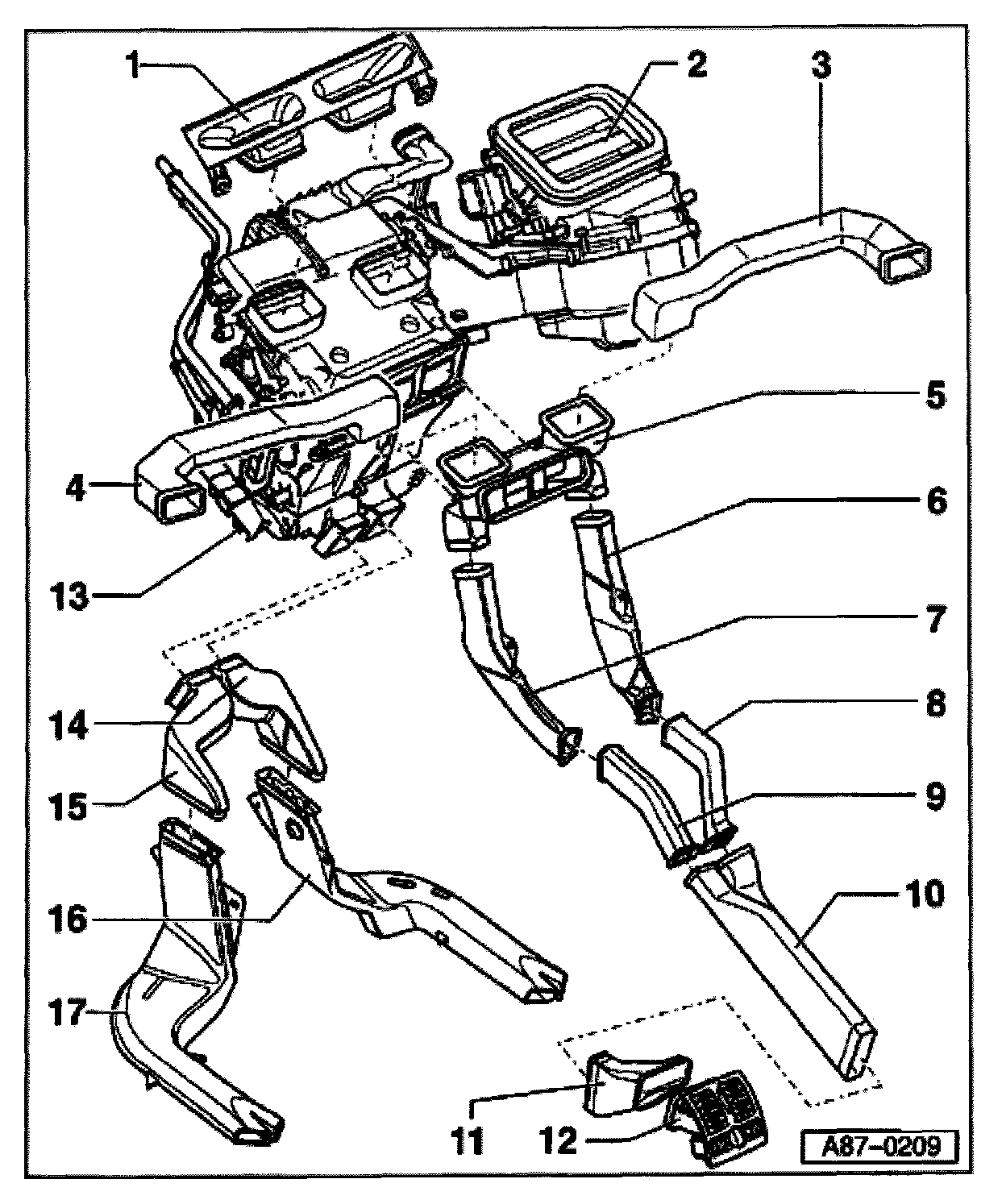

1 - Intermediate piece for defroster channel
- Can only be replaced when instrument cross member unit is removed.
- Different versions, on air conditioning version "1", the air guide from the air conditioner takes place via two openings, from version "2" these two openings have been combined into one opening.
2 - Air conditioner
3 - Air duct to right instrument panel vent
4 - Air duct to left instrument panel vent
5 - Central air duct
- The position of the central flaps is different, from version "2", when the center flap is closed the two outer flaps remain a slightly open (angle between both flaps approx. 40 degree), on version "1" all flaps close simultaneously.
6 - Connecting duct, right
- Attached to center section of instrument panel
7 - Connecting duct, left
- Attached to center section of instrument panel
8 - Connecting duct, right
- Attached to instrument panel center section trim
9 - Connecting duct, left
- Attached to instrument panel center section trim
10 - Center air duct, rear
- Installed in center console
11 - Intermediate - section for rear center vent
12 - Center vent, rear
- Pull out of center console using special tool
13 - Footwell vent
- Can only be replaced when air conditioner unit is removed.
14 - Connecting duct, right
15 - Connecting duct, left
16 - Rear - footwell vent, passenger's side
17 - Rear footwell vent, driver's side
