Electric Vacuum Pump, Removing and Installing

Electric vacuum pump, removing and installing
No provision is made for servicing the vacuum pump. If problems are encountered, determine cause by means of a function test and leak test. If a malfunction is found the electric vacuum pump must be replaced.

Removal:
- Remove design cover.

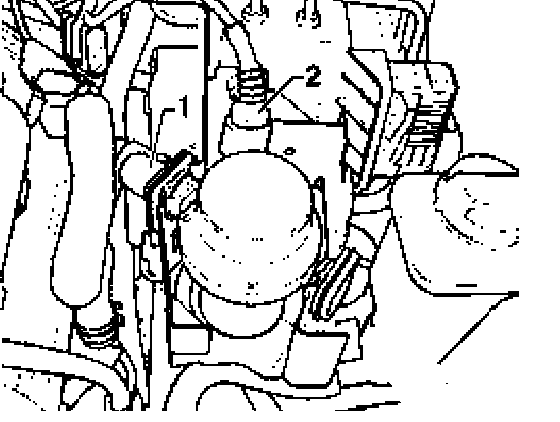

- Unplug electrical connector-2-.
- Detach vacuum hose -1- from vacuum pump.

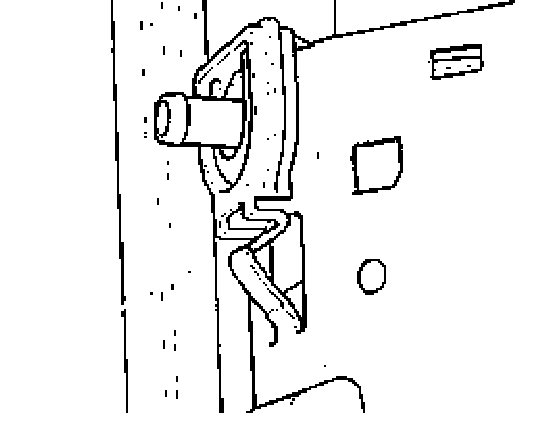

- Press clip out of retainer by hand.
- Lift out electric vacuum pump from above.

Installing
Install in reverse order.
