Dual-Mass Flywheel or Drive Plate, Overview

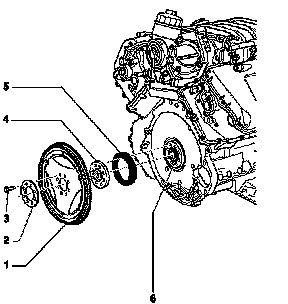

Dual-mass flywheel or drive plate, overview





1. Dual-mass flywheel or drive plate
2. Packing plate
3. Bolt 30 Nm plus an additional 90° (1/4) turn
^ Always replace
4. Shim
5. Oil seal For crankshaft (timing chain end)
6. Crankshaft
