01L 5 Speed Automatic AWD

Removing
- Place waste oil container under transmission.
- Open drain plug -item 1, and drain ATF.

Note: Some of the ATF remains in the oil pan.

- Loosen bolts for oil pan in diagonal sequence.
- Remove oil pan.

Note: Clean magnet in oil pan (4 magnets). Check that magnets have complete contact with oil pan.

Installing
Installation is in reverse order of removal but note the following:
- Replace seals.
- Tighten bolts for oil pan in several steps.
- Change ATF or top up after repair.

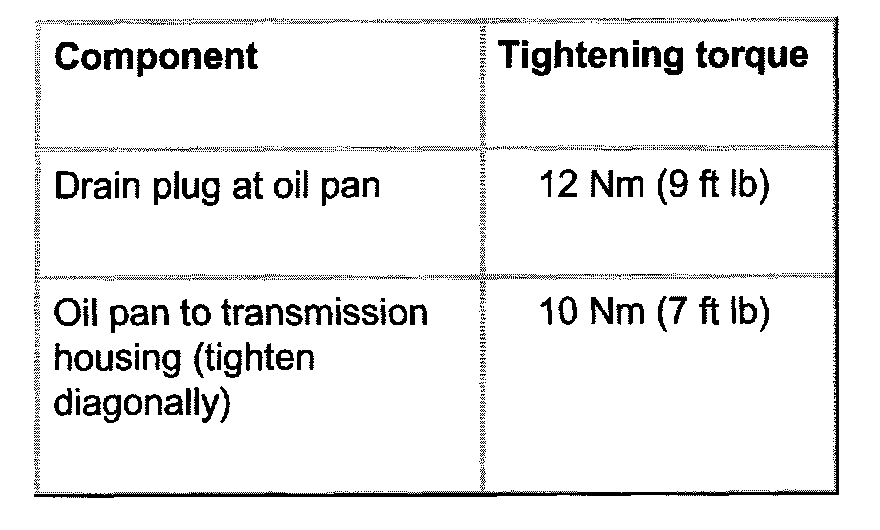

Tightening torque
