Coolant Pipes, Overview

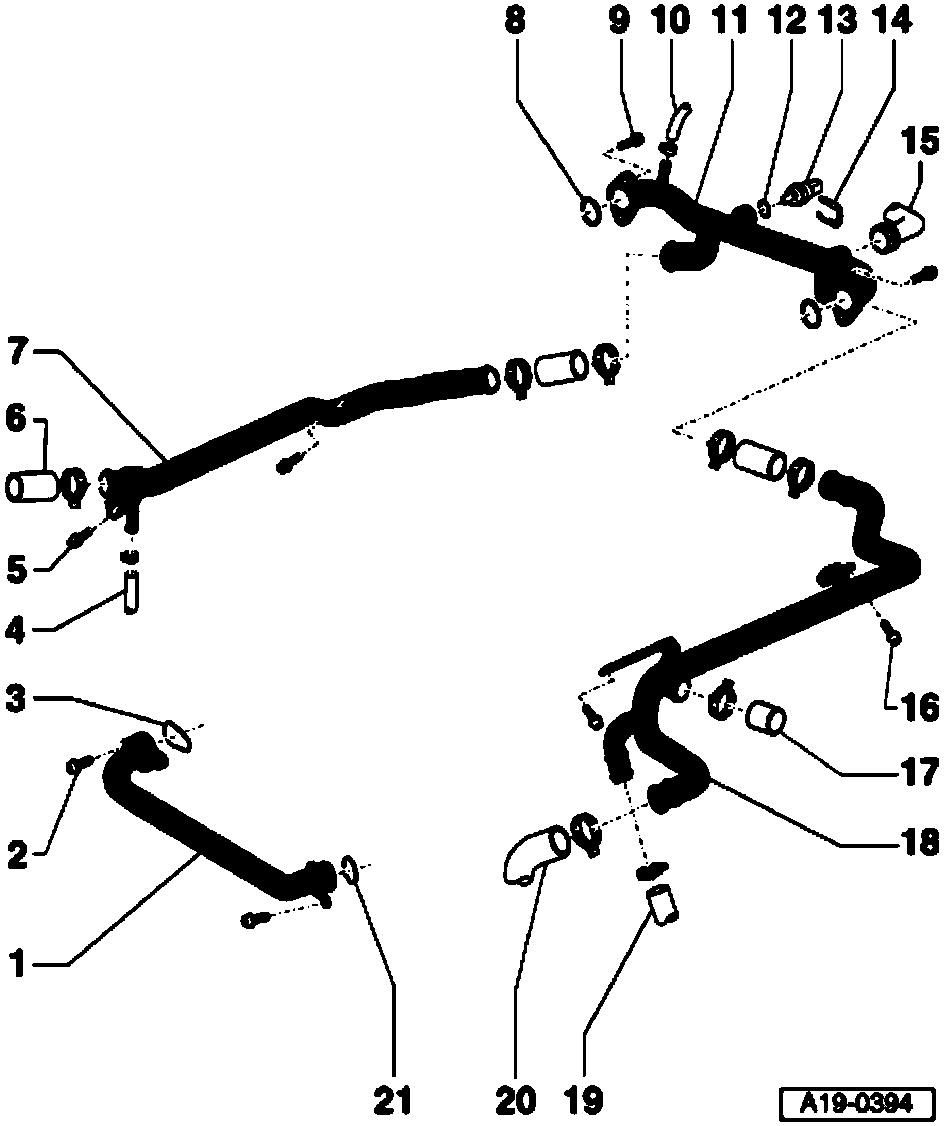

Coolant pipes, overview





1. Front coolant pipe
2. 10 Nm
3. Sealing ring
^ Always replace
4. Coolant hose
^ To alternator
5. 10 Nm
6. Coolant hose
^ To top of radiator
7. Right coolant pipe
8. O-ring
^ Always replace
9. 10 Nm
10. Coolant hose
^ To expansion tank
11. Rear coolant pipe
12. 0-ring
^ Always replace
13. Engine Coolant Temperature (ECT) Sensor -G2-/-G62-
14. Clip
15. Coolant hose
^ To heating system heat exchanger
16. 10 Nm
17. Plug
18. Left coolant pipe
19. Coolant hose
^ To left auxiliary radiator
20. Coolant hose
^ To thermostat housing
21. 0-ring
^ Always replace
