Intake Manifold, Overview

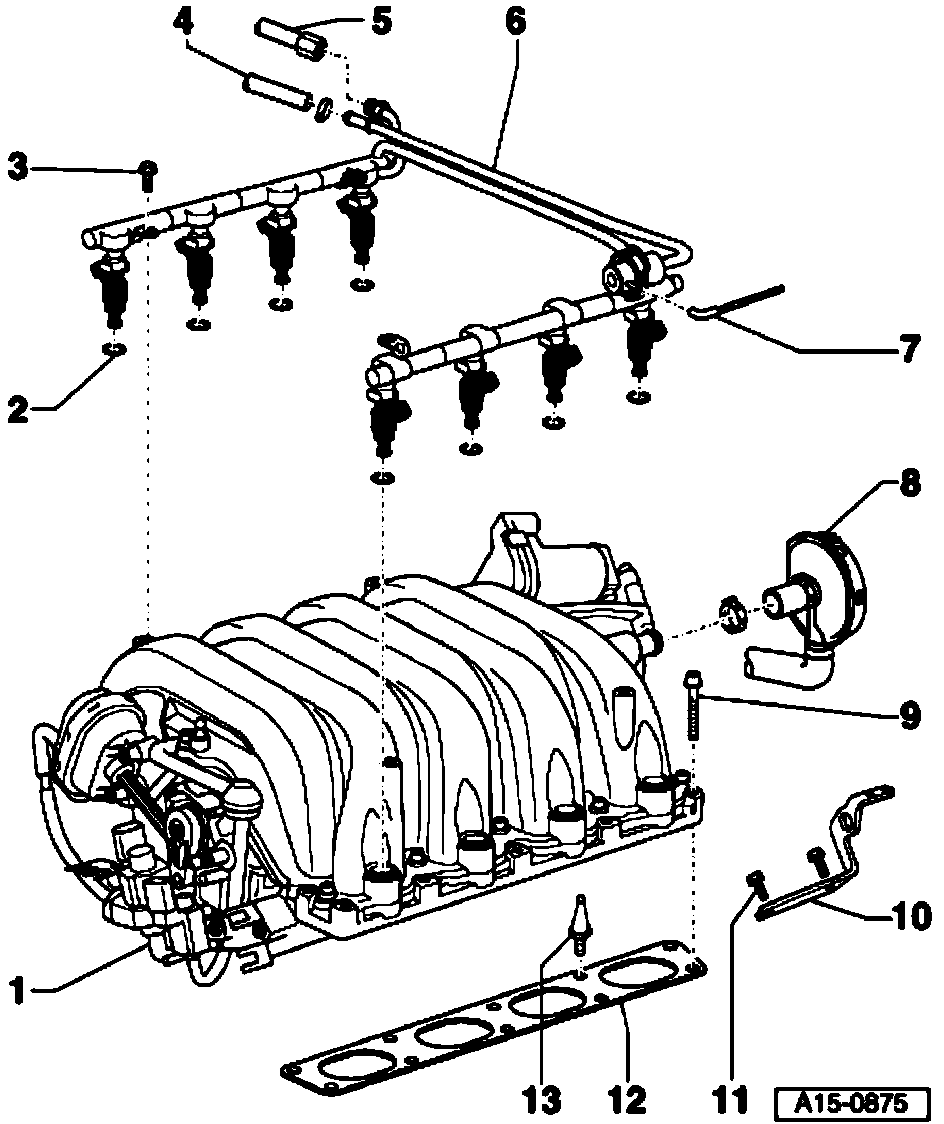

Intake manifold, overview





1. Intake manifold
2. O-rings
^ For injectors
^ Always replace
3. 10 Nm
4. Fuel return line
5. Fuel supply line
^ Tighten union nut to 25 Nm
6. Fuel rail
7. Vacuum line
8. Pressure control valve
^ For crankcase breather
9. 10 Nm
^ Tighten diagonally in stages
10. Lifting eye
11. 23 Nm
12. Gasket
^ For intake manifold
^ Always replace
13. Locating bolt, 0.6 Nm
