Intake Manifold: Locations

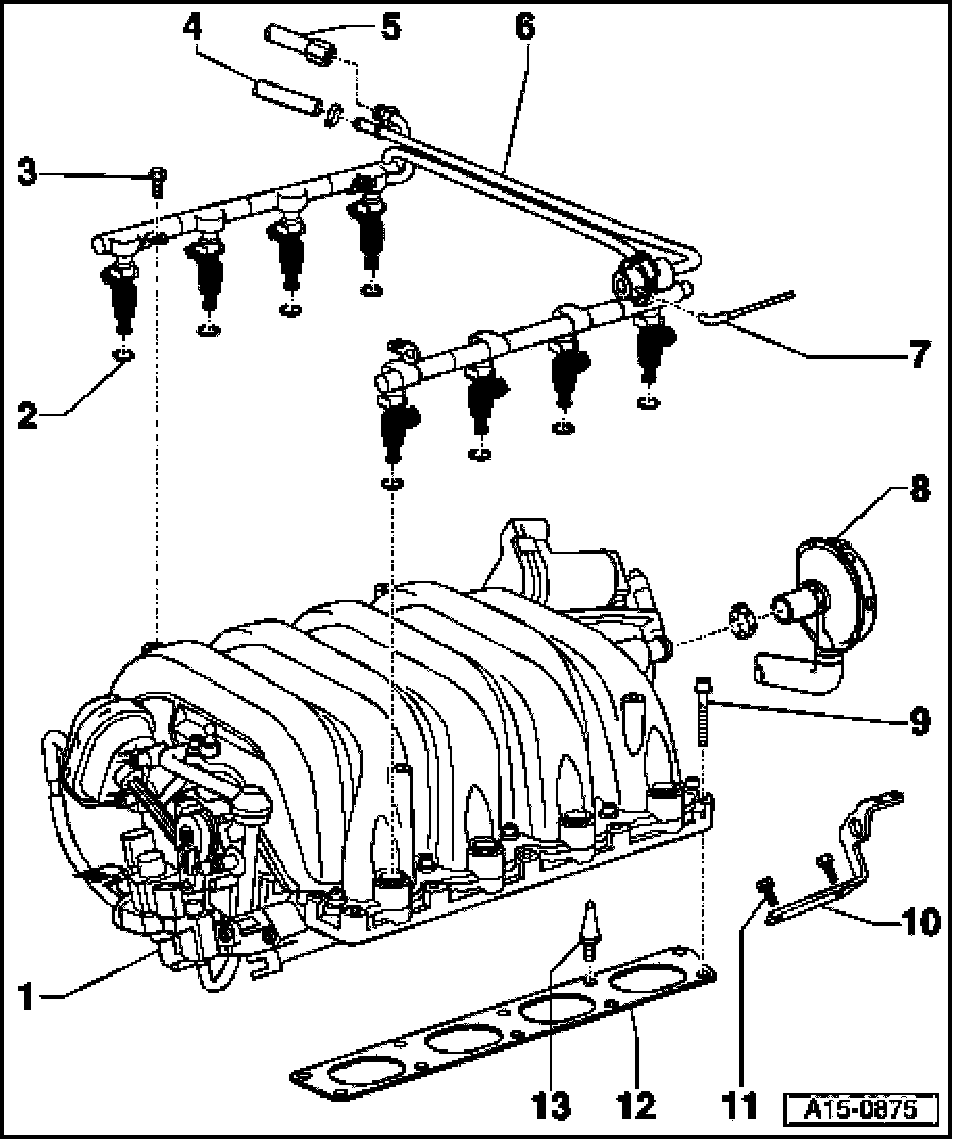

Intake Manifold, Assembly Overview







1 Intake manifold
2 O-rings
- For injectors
3 10 Nm
4 Fuel return line
5 Fuel supply line
- Tighten union nut to 25 Nm
6 Fuel rail
7 Vacuum line
8 Pressure regulating valve
- For crankcase breather
9 10 Nm
- Tighten in stages and in diagonal sequence
10 Lifting eye
11 23 Nm
12 Gasket
- For intake manifold
13 Positioning bolt - 0.6 Nm
