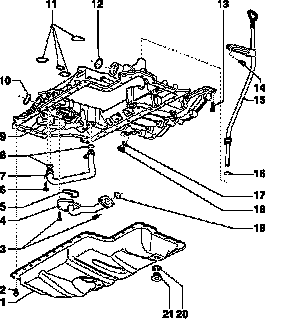

Upper Part of Sump, Overview

Upper part of sump, overview





1. Lower part of sump
^ Oil level thermal sensor -G266-
2. 10 Nm
3. 10 Nm
4. Oil pipe
5. Gasket
^ Always replace
6. 10 Nm
7. Oil pipe
8. O-rings
^ Always replace
9. Upper part of sump
10. Oil seal
^ Always replace
11. Gasket
^ Always replace
12. O-ring
^ Always replace
13. 15 Nm
14. 10 Nm
15. Guide tube for dipstick
16. O-ring
^ Always replace
17. Oil seal
^ Always replace
18. Screw plug, 35 Nm
19. O-ring
^ Always replace
20. Oil seal
^ Always replace
21. Oil drain plug, 50 Nm
