Power Take-Off, Overview

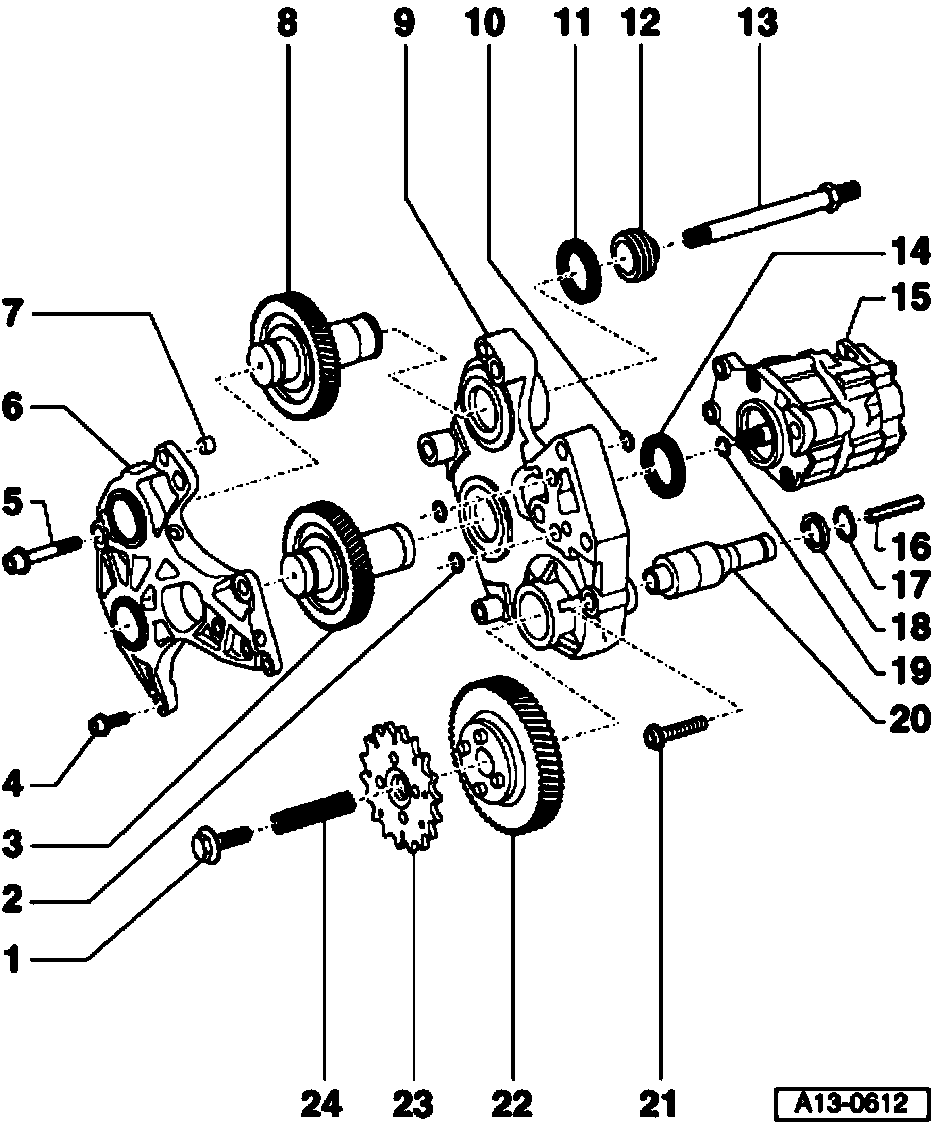

Power take-off, overview





1. 62 Nm
2. 0-ring
^ Always replace
3. Spur gear
^ For power steering pump drive
4. 10 Nm
5. 22 Nm
6. Rear bearing cap
^ For spur gear unit
7. Dowel sleeve
^ 2x
8. Spur gear
^ For AC compressor drive
9. Front bearing cap
^ For spur gear unit
10. O-ring
^ Always replace
11. Sealing ring
^ For AC compressor drive
12. Dust cap
^ For AC compressor drive
13. Drive shaft
^ For air-conditioner compressor
^ Tighten to 60 Nm
14. Sealing ring
^ For vane pump drive
15. Power steering pump
^ For power steering
16. Drive shaft
^ For oil pump
17. Circlip
18. Thrust washer
19. O-ring
^ Always replace
20. Shaft for drive spur gear
21. 22 Nm
22. Drive spur gear
^ For PTOs
23. Drive sprocket
^ For PTOs
24. Spring
