PTO Sealing Rings, Replacing

PTO sealing rings, replacing





Special tools and equipment

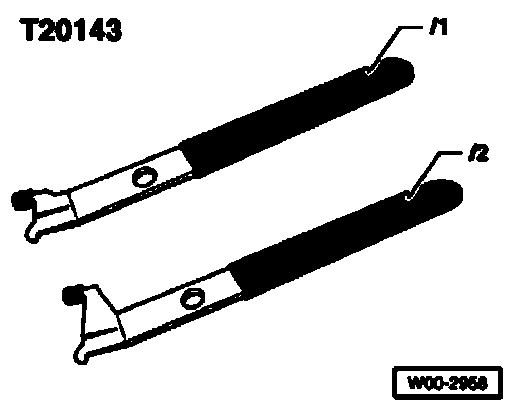

^ Pressing-out lever T20143/1
^ Assembly device T40051
^ Assembly device T400512

Sequence of operations
- Remove air conditioner compressor.

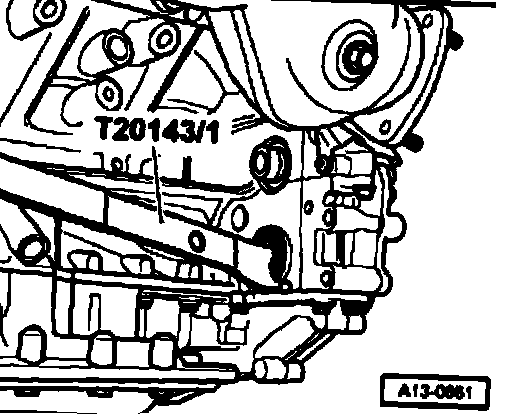

- Pry out sealing ring for AC compressor drive using pressing-out lever T20143/1.

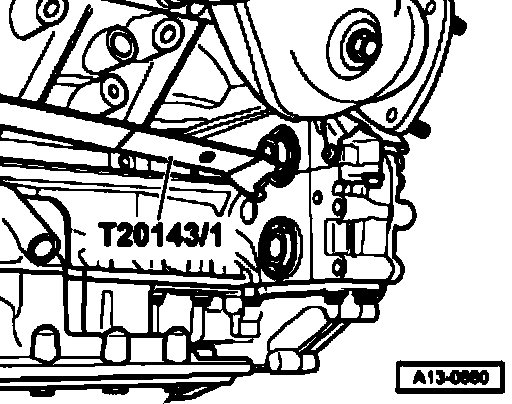

- Pry out sealing ring for power steering pump drive using pressing-out lever T20143/1.

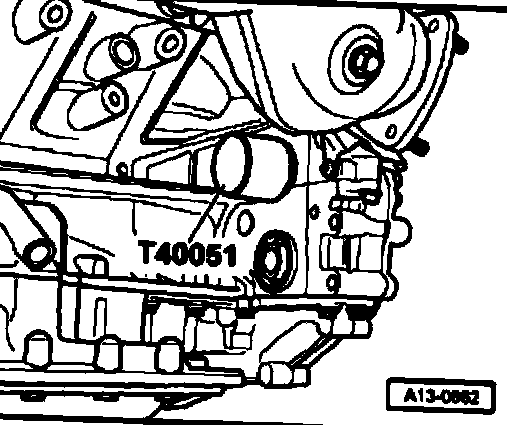

- Drive in sealing ring for AC compressor drive using assembly device T40051.

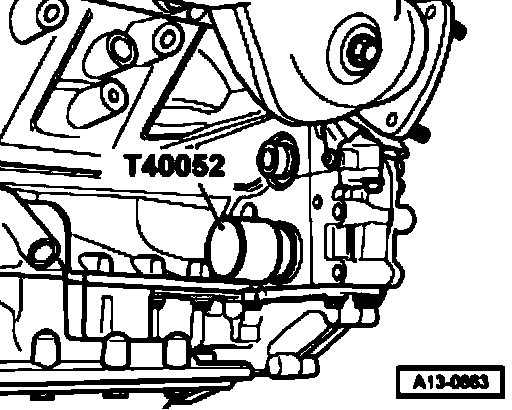

- Drive in sealing ring for power steering pump drive using assembly device T40052.

Perform remaining installation operations in reverse order of removal, paying attention to the following:
- Install power steering pump.
- Install air condition compressor.
