PTO Chain, Overview

Power take-off

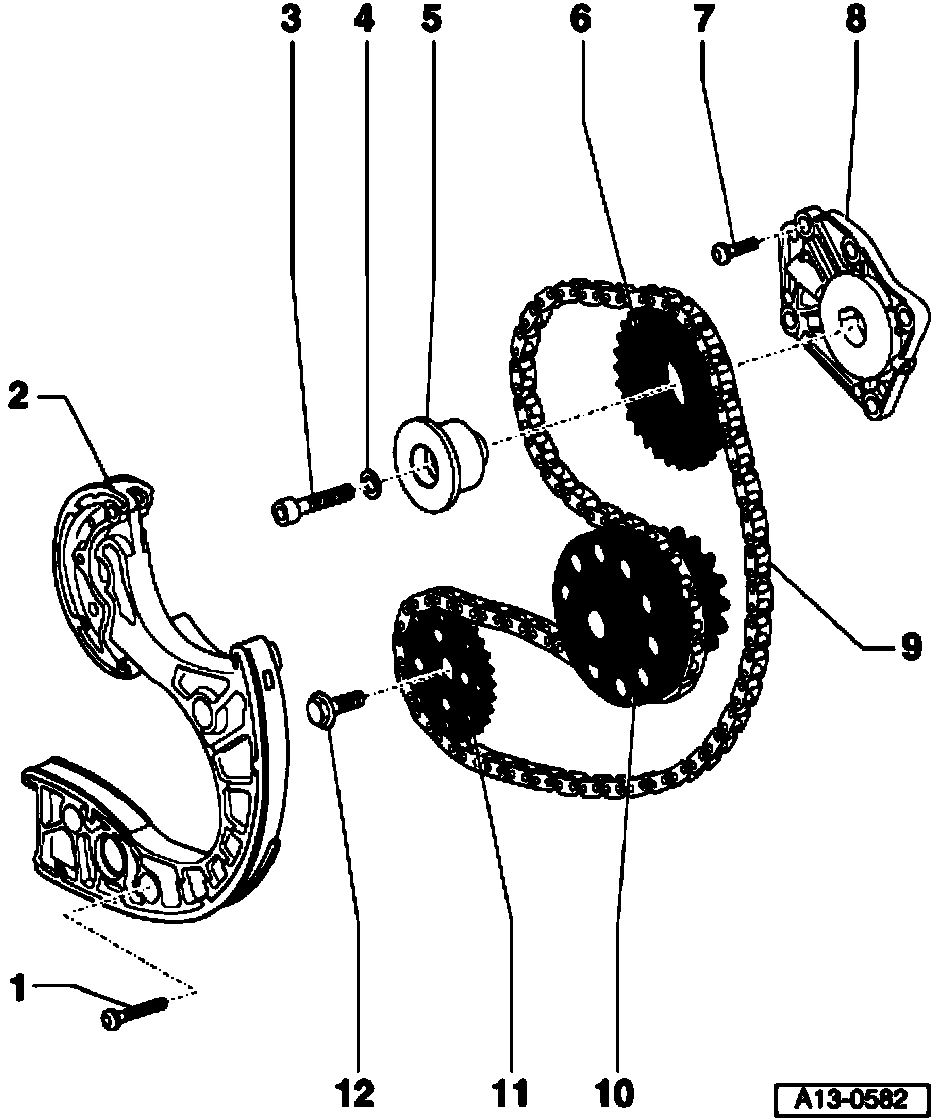

PTO chain, overview





1. 10 Nm
2. Chain tensioner
^ With guide rail
3. 42 Nm
4. Washer
5. Pivot pin
^ For idler sprocket
6. Idler sprocket
^ For PTO chain
7. 10 Nm
8. Mounting bracket
^ For idler sprocket
9. Chain
^ For PTO,s
10. Crankshaft
11. Drive sprocket
^ For PTO,s
12. 62 Nm
