Fluid - Differential: Testing and Inspection

5 Speed Automatic 01V

Gear oil, in rear final drive, checking
Special tools and equipment

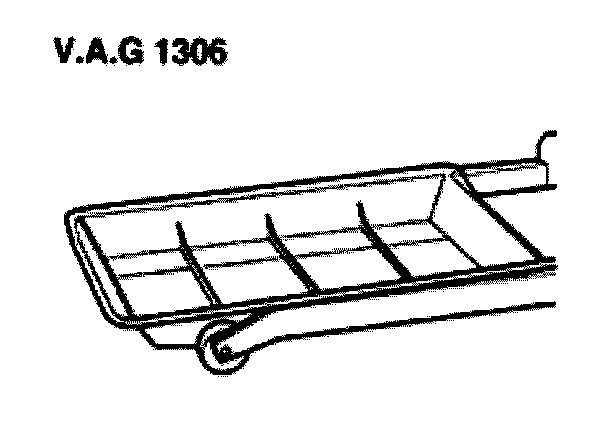

- VAG1306 drip tray
- Place VAG1306 drip tray underneath.

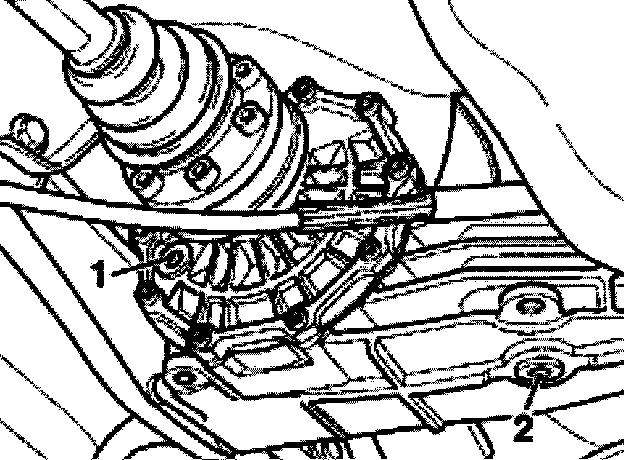

- Unscrew oil filler plug -1- for checking transmission oil.
^ Specification: Oil level should reach lower edge of oil filler hole.
- Top off transmission fluid if necessary.
- Install oil filler plug.

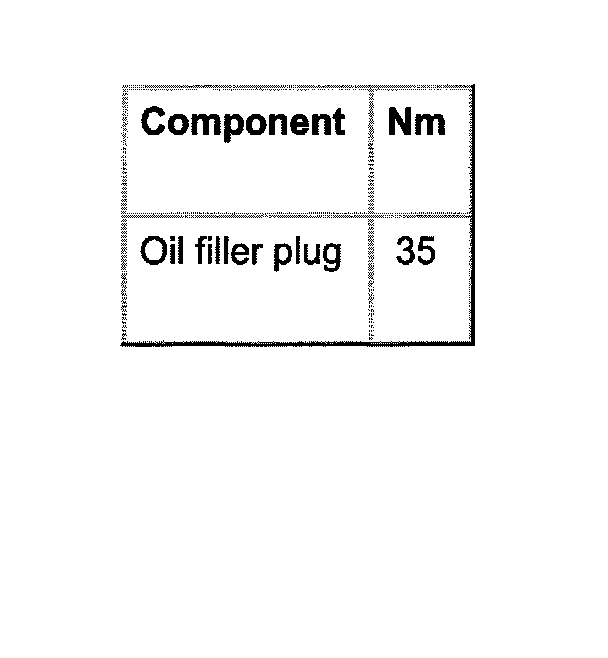

Tightening torque
