5 Speed Automatic 01V

5 Speed Automatic 01V

Right and left transmission supports, removing and installing

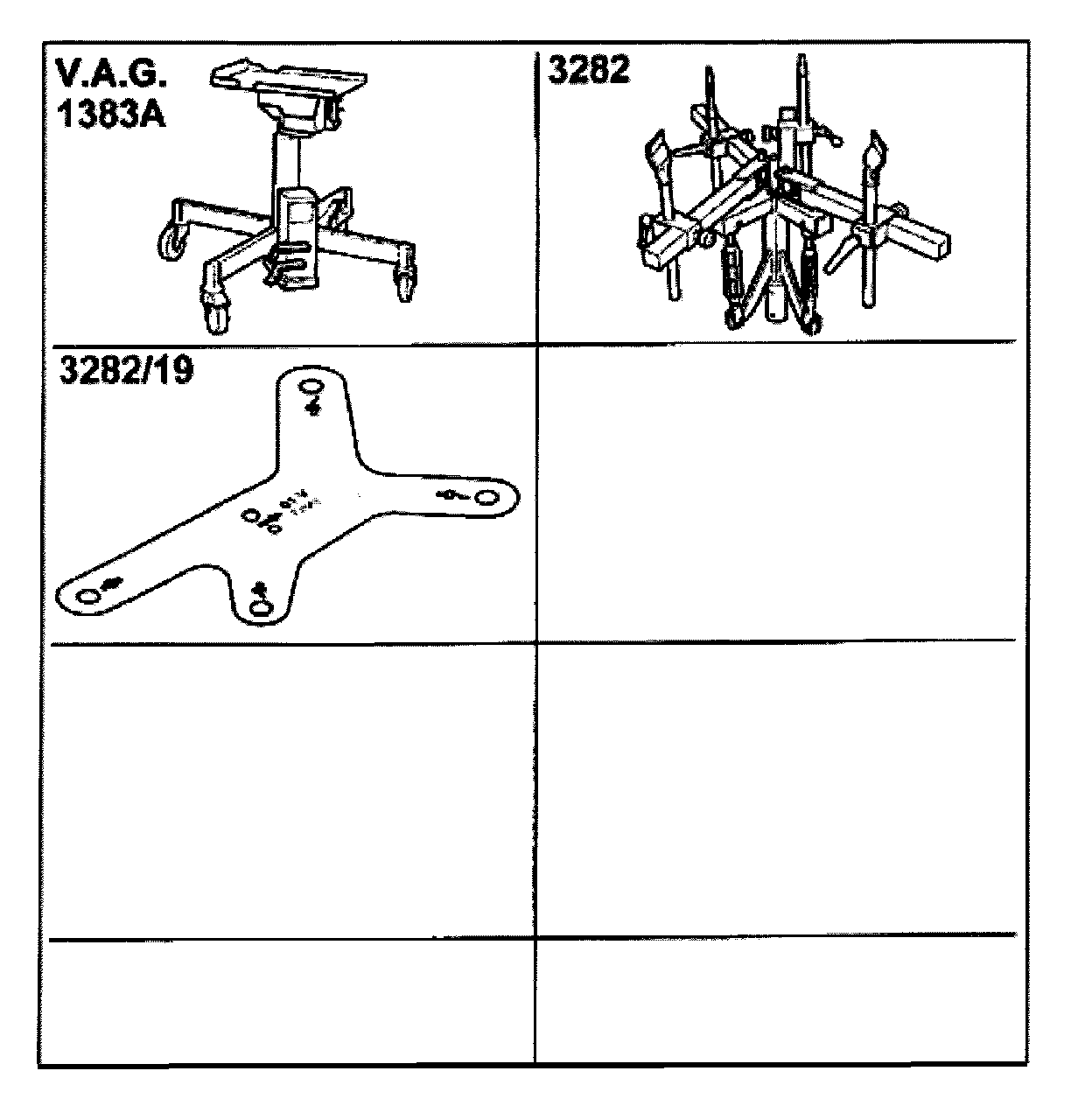

Special Tools and equipment





- Engine/transmission support VAG 1383 A
- 3282 transmission support
- 3282/19 adjustment plate

Note: There is a distinction made between 8 cylinder engines and all others

Removing

Note: Transmission must be supported as indicated when both transmission supports are removed. Transmission does not need to be supported this way when only one of the transmission supports is being removed.

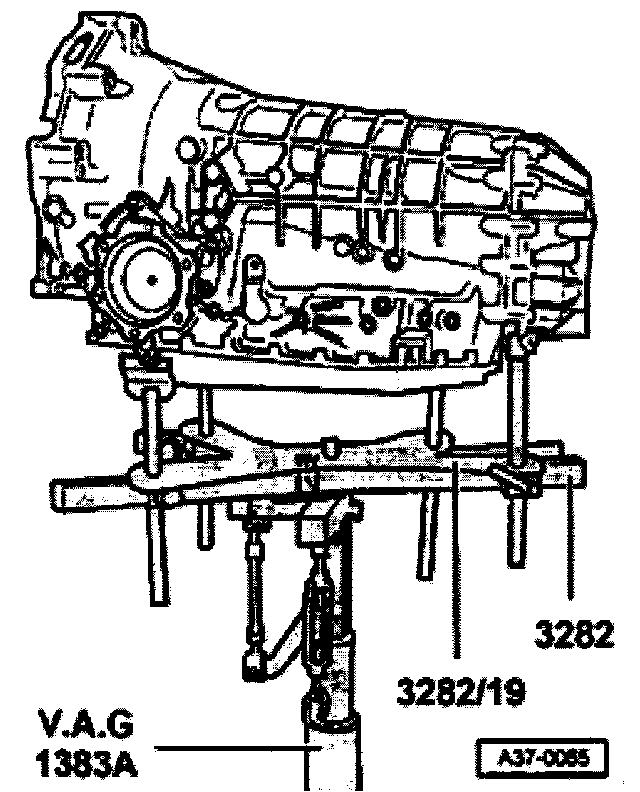

- Prepare 3282 transmission support for Automatic Transmission 01V with 3282/10 adjustment plate and place it on the VAG1 383A engine/transmission hoist.

Note: The symbols on the adjustment plate indicate the necessary mounts for automatic Transmission 01V and the arrow points toward front of vehicle.





- Roll VAG1 383A engine/transmission hoist with 3282 transmission support under transmission and support transmission.

Note: If 3282 transmission support is not available, transmission can be supported using the VAG1383A transmission lift and the 1359/2 universal mount.

For all engines except 8 cylinder engines

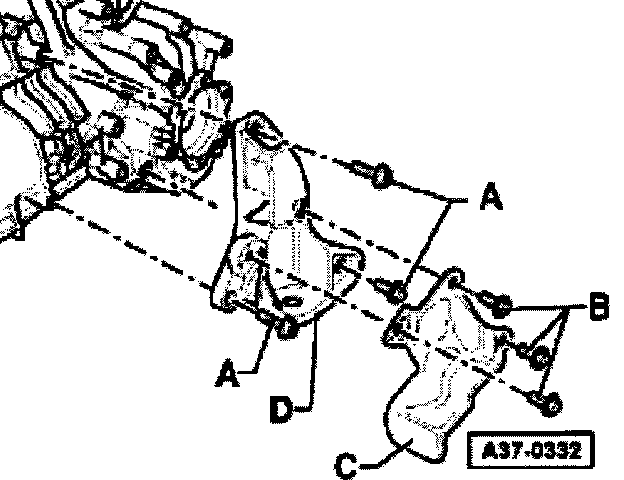

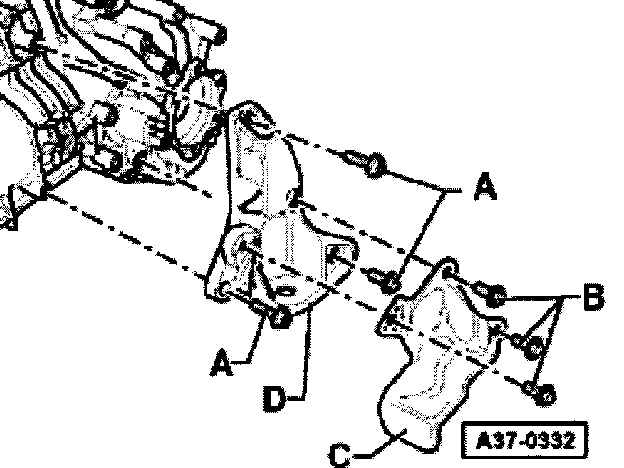

Right transmission support





- Remove heat shield -C-.

Note: The right heat shield is not installed on 6 cylinder TDI engines.

- Remove right heat shield -D- by removing bolts -A- from transmission.

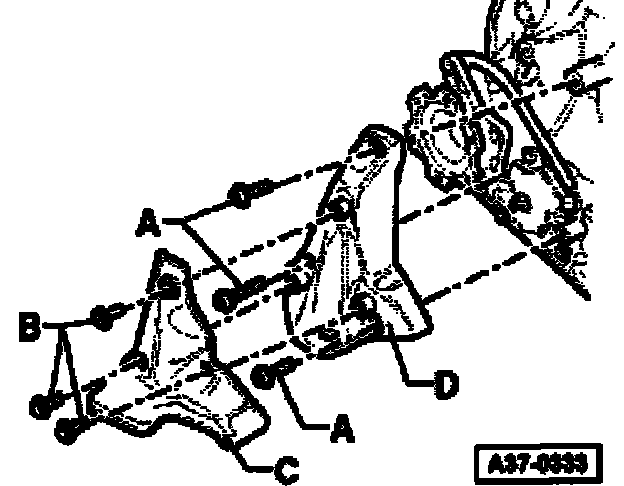

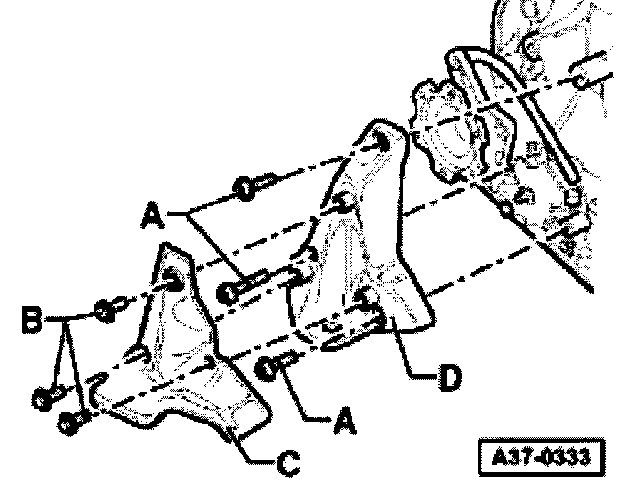

Left transmission support





- Remove heat shield -C-.

Note: The left heat shield is not installed on 4 cylinder engines.

- Remove left heat shield -D- by removing bolts -A-from transmission.

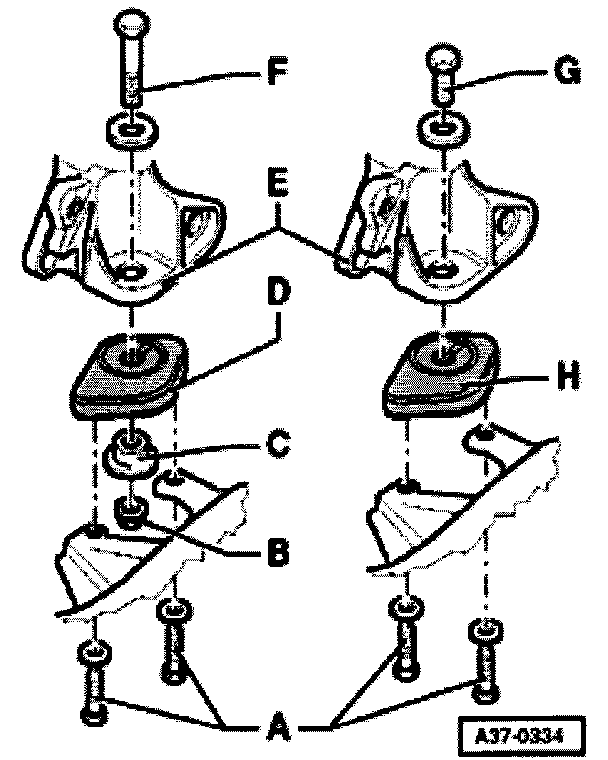

Left and right transmission supports





- Remove transmission supports -E-.

Note: Items -C- and -B- are not installed on vehicles with hydraulic transmission bearing -H-, because bolt -G-is threaded directly into the transmission bearing.

Installing
Installation is the reverse of removal.

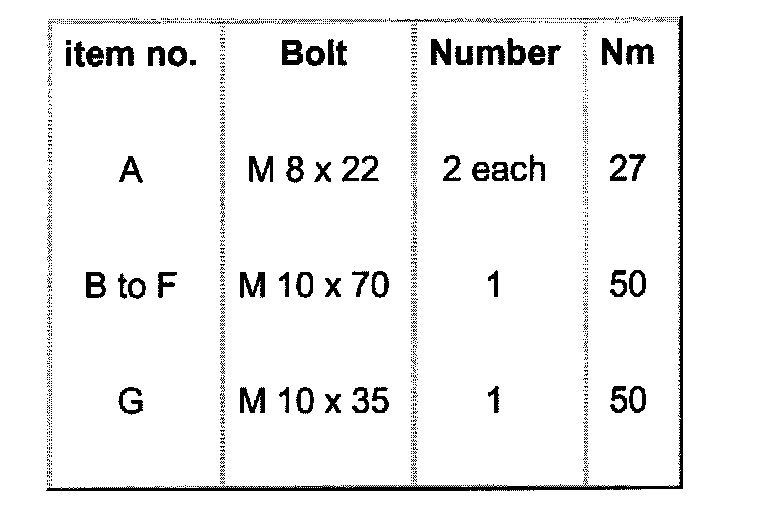

Tightening torques for left and right transmission supports

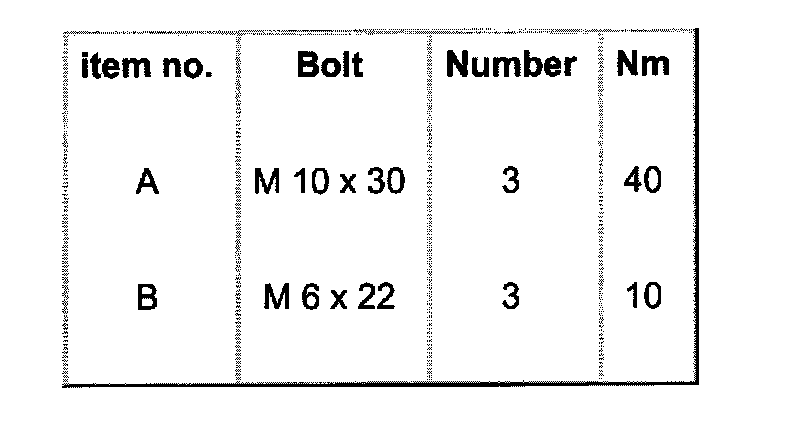

Tightening torques for left transmission support

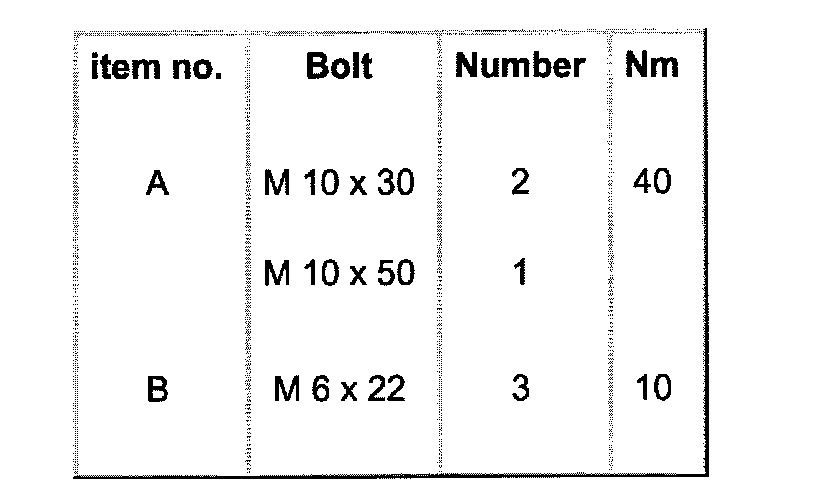

Tightening torques for right transmission support
