Shift Cable: Testing and Inspection

5 Speed Automatic 01V

Selector Lever Cable, checking and adjusting

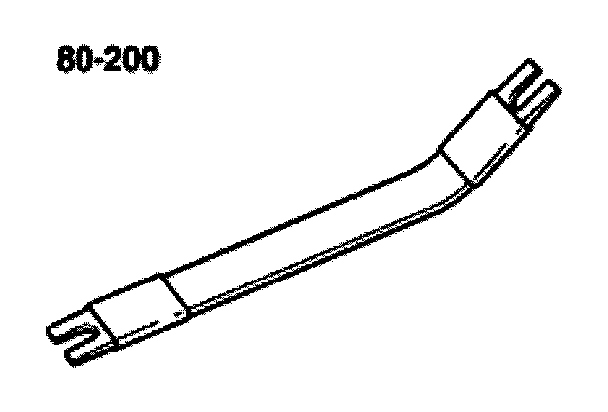

Required special tools:





^ Lever 80-200

Checking
- Shift selector lever to "P".
- Lift vehicle.
- Remove heat shield at selector lever cable.

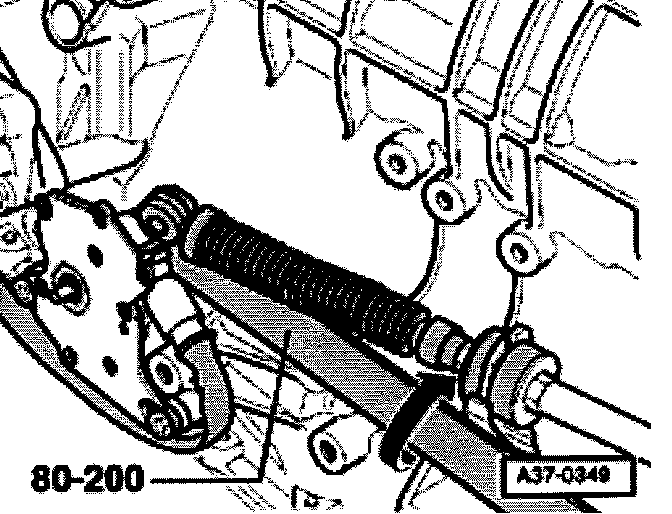

- Lever off selector lever cable using lever 80-200 from lever and selector shaft -arrow
- Move selector lever from "P" to "2".
- Shift mechanism and selector lever cable must move easily. If necessary, replace selector lever cable or repair shift mechanism.
- Shift selector lever to "P".
- When moving shift lever and selector shaft to "P", the parking lock must engage. Both front wheels must not turn in one direction.
- It must be possible to attach selector lever cable to lever/selector shaft, otherwise adjust selector lever cable.

Adjusting:
- Selector lever cable must be separated from lever/selector shaft.
- Shift selector lever to "P".
- When lever/selector shaft are moved to "P", the parking lock must be engaged and the front wheels must not turn in one direction.





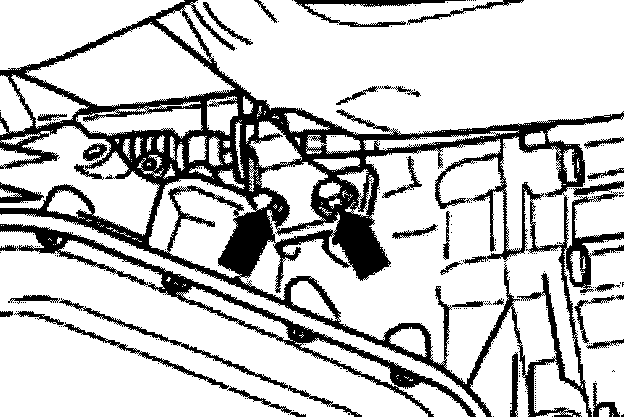

- Loosen nuts-arrows- for bracket on transmission.

Note: For illustration purpose the heat shield is not shown.

- Attach selector lever cable on lever/selector shaft.

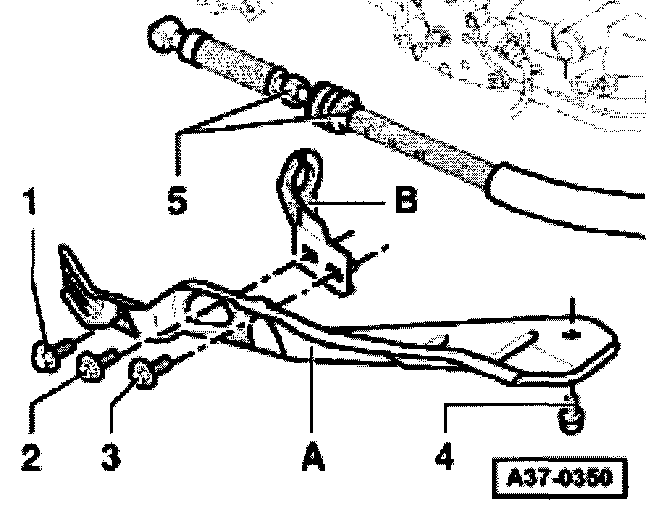

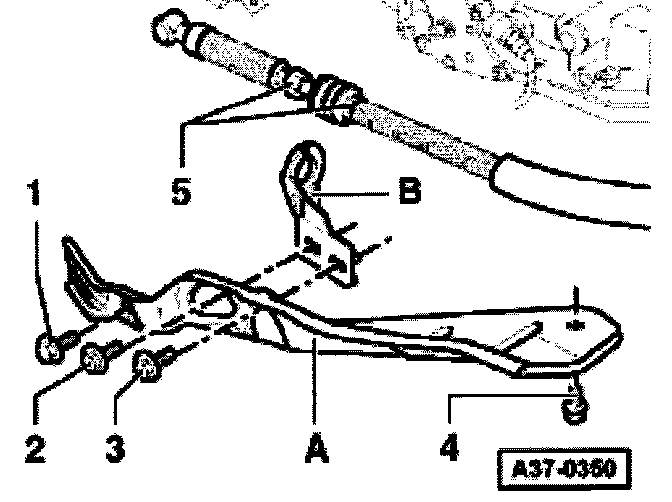

- Straighten selector lever cable at bracket -B-.
- Install heat shield -A-.





- Tighten bolts -2- and -3- at bracket.
- Check shift mechanism.

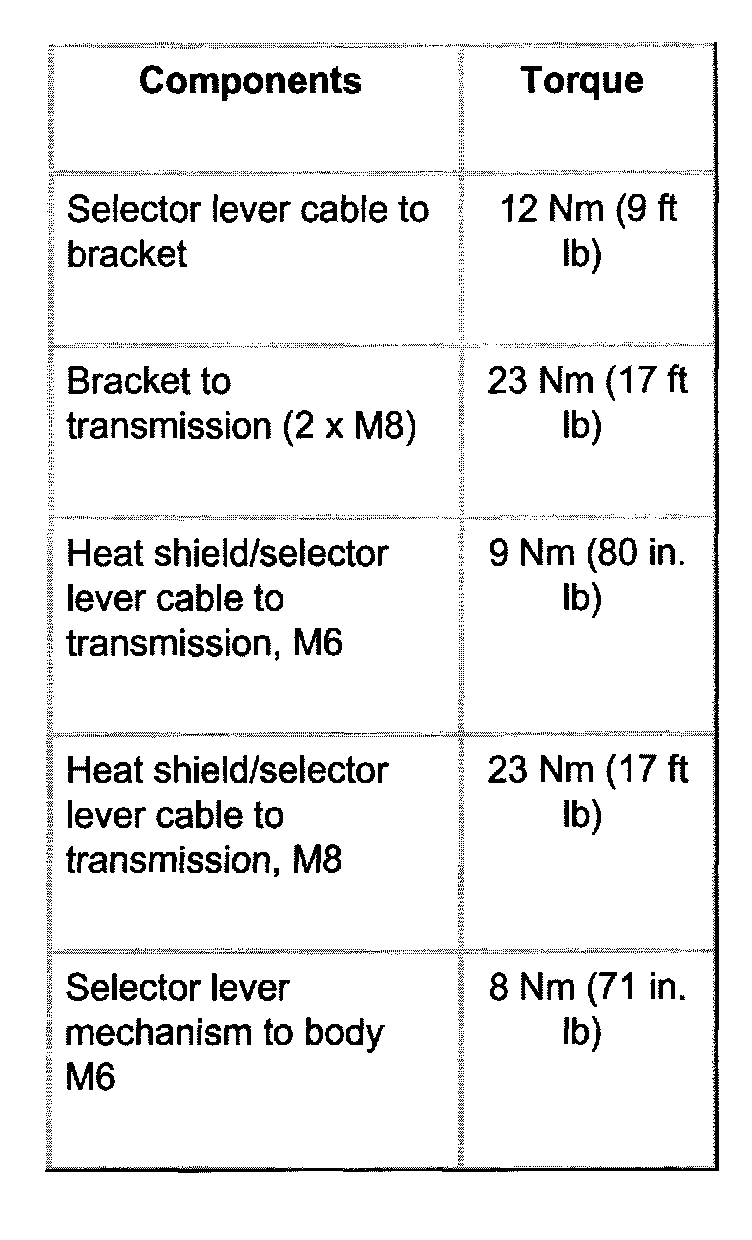

Tightening torques:
