5 Speed Automatic 01V

5 Speed Automatic 01V

Selector Lever Cable, removing and installing

Required special tools:

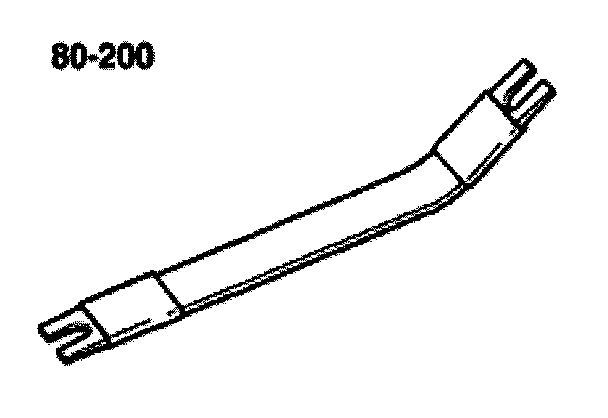

^ Lever 80-200

Removing
- Shift selector lever to "P". - Lift vehicle
- Disconnect front exhaust system with catalytic converters from rear exhaust system and hang up with wire.





- Remove heat shield -A- above drive shaft
- Remove heat shield -B- for drive shaft from cover for Torsen differential -arrows-.
- Disconnect drive shaft at transmission and support or hang up with wire.
- Remove rubber sleeve of selector lever cable and push it back.

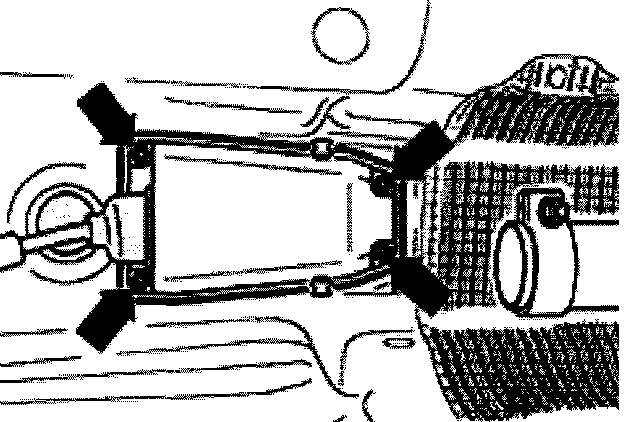

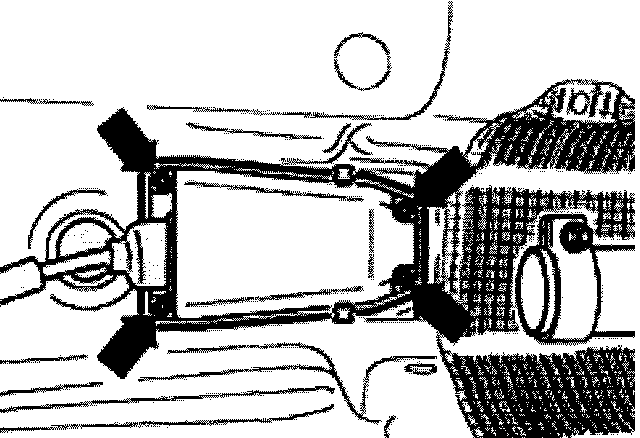

- Remove cover from mounting bracket -arrows-.
Selector lever cable from mounting bracket, disconnecting:

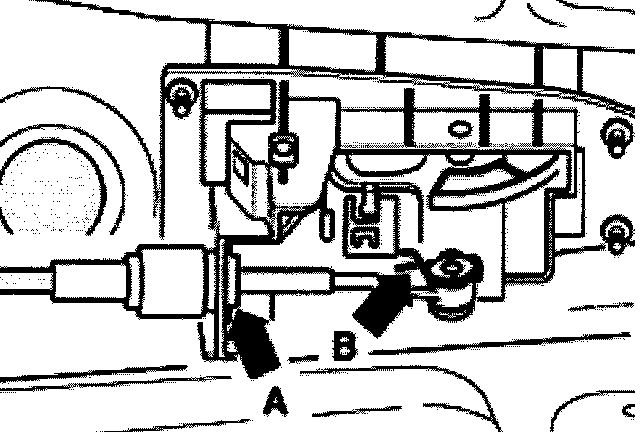

- Press together ends of spring clip -B- and remove.
- Pull out lock plate -A- for selector lever cable at mounting bracket downward.





- Remove selector lever cable from selector lever.

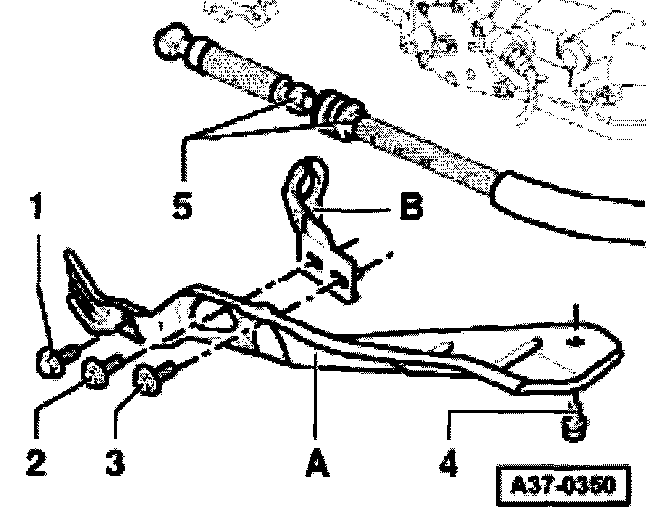

- Remove bolts -1-, -3,- and 4- and remove heat shield -A- for selector lever cable.

Note: Bolt 3 can be longer for certain engine versions. In addition, a bracket for the exhaust system can be installed on it.

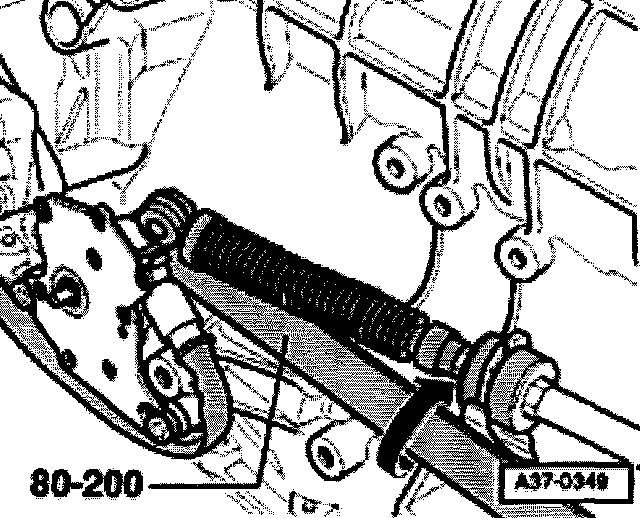

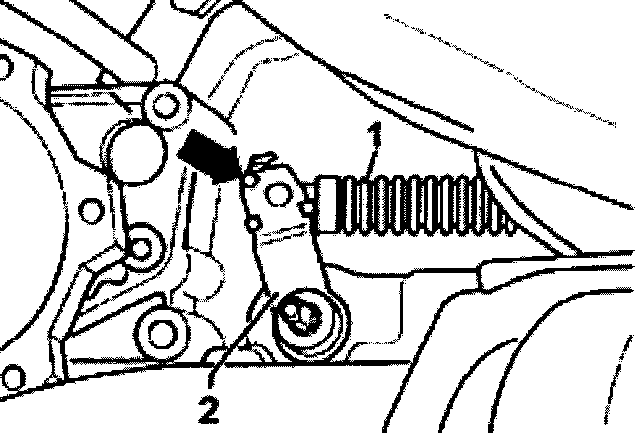

- Lever off selector lever cable with special tool 80-200 from lever and selector shaft -arrow-.





- Remove bracket - B- from transmission.

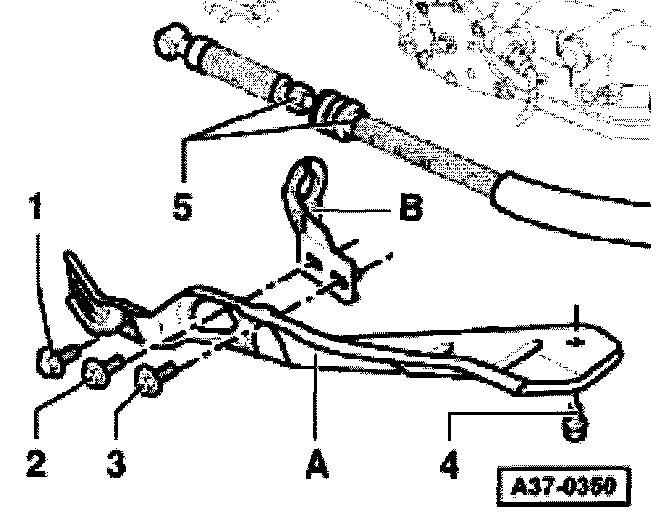

- Remove bracket - B- from selector lever cable by removing nuts -5-.
- Remove selector lever cable from mounting bracket, and do not kink.

Installing
- Move selector lever, lever and selector shaft in position "P" (parking lock must engage).





- Do not bend or king selector lever cable. Slightly lubricate eye and socket before installing.
- Guide selector lever cable into mounting bracket.
- Attach selector lever cable on selector lever.

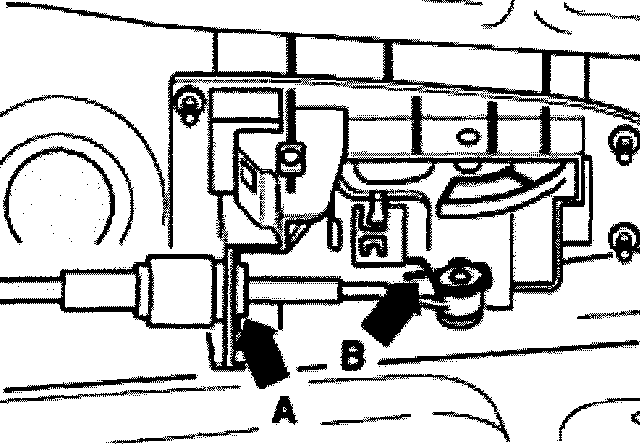

- Press ends of spring clamp -B- together and secure selector lever cable.
- Install lock plate -A- for selector lever cable at mounting bracket.

Installation position:
- Angled ends of lock plate must point toward end of selector lever cable.





- Attach selector lever cable hand-tight to bracket-B-.
- Attach bracket -B-hand-tight to transmission.

Note: Do not bend or counter-hold the lever/shift rod when pressing on, since the skim mechanism will not be able to be adjusted exactly.

- Attach selector lever cable to lever and selector shaft.
- Straighten selector lever cable in bracket -B-.
- Tighten bracket to transmission (arrows -1-) to tightening torque.

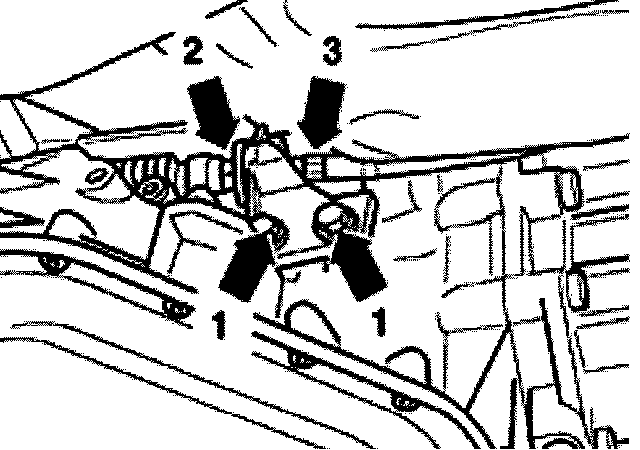

- Tighten bracket to transmission -arrows 1- and selector lever cable to bracket -arrow 2- with proper torque. Counter-hold at hex head 3-.

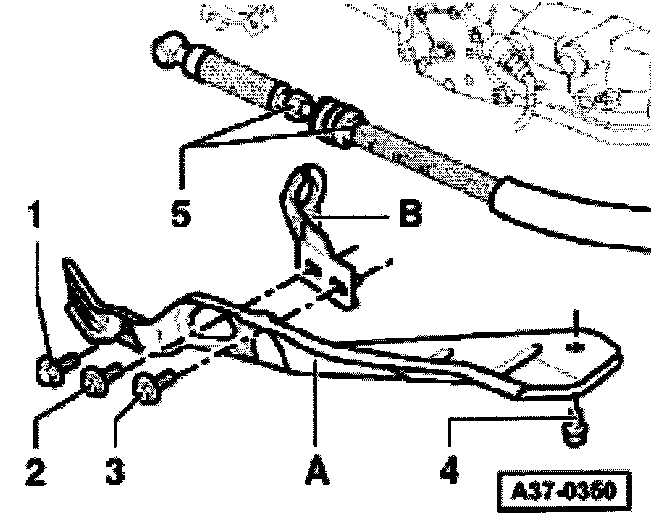

- Install heat shield -A-.

Note: Bolt 3 can be longer for certain engine versions. In addition, a bracket for the exhaust system can be installed on it.





- Tighten 4 nuts -arrows- with 10 Nm (7 ft. lbs.).
- Check adjustment of selector lever cable and adjust if necessary.
- Reconnect drive shaft to transmission flange, Drive shaft, removing and installing.
- Reconnect front and rear exhaust systems.

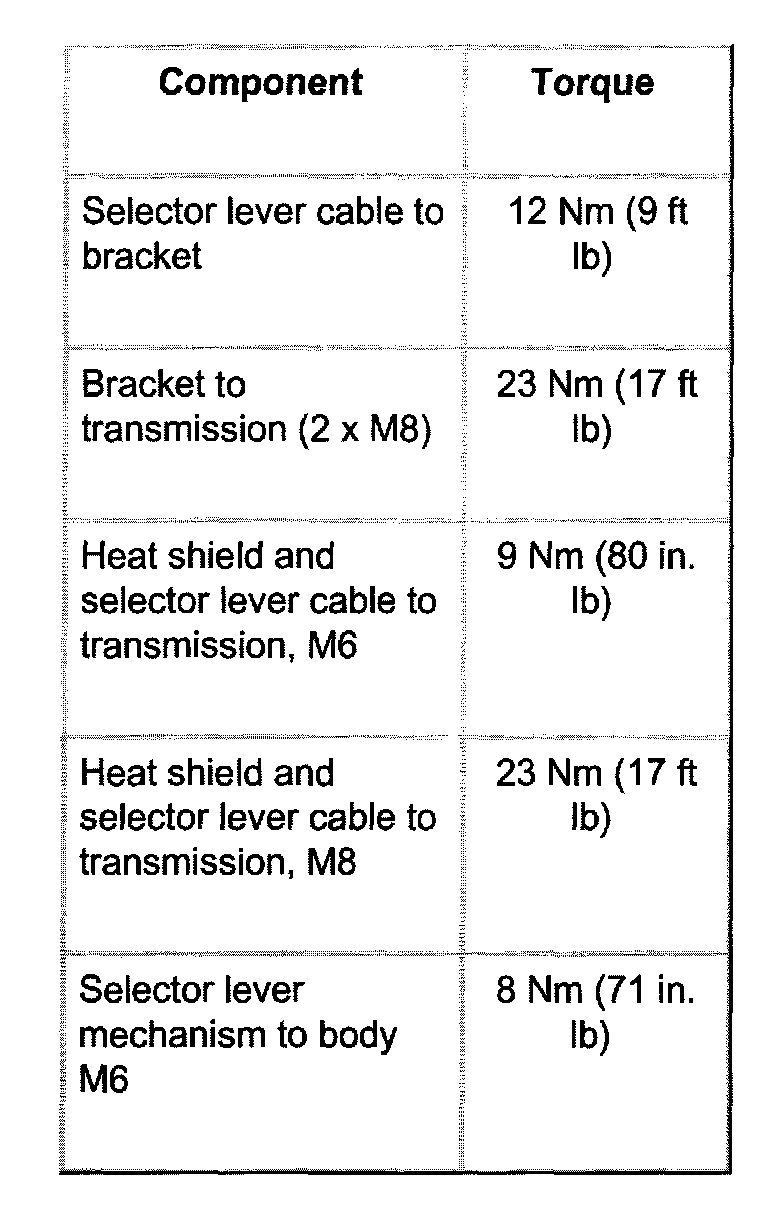

Tightening torques:
