Body - Rear License Plate Fastener Replacement
66 08 112001868/3
December 2, 2008.

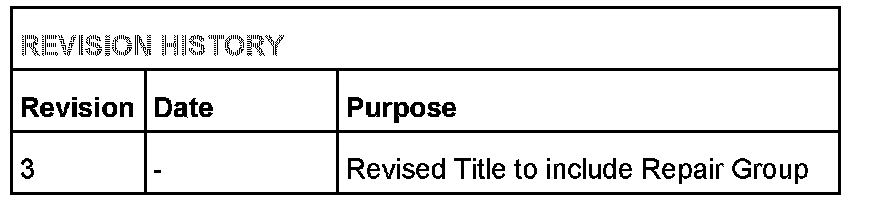

Supersedes Technical Service Bulletin Group 66 number 07-05 dated August 9, 2007 for reasons listed below.

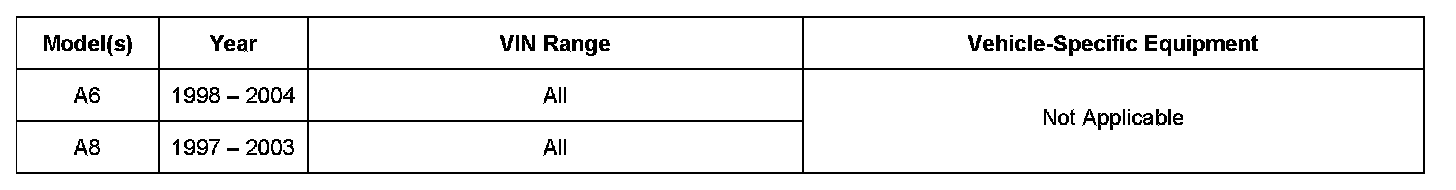

Affected vehicles
66 Rear license plate, replacing damaged fasteners
Condition
Rear license plate fasteners broken, loose or fallen behind license plate holder / lens assembly.
Technical Background
Production Solution
Service
1. Remove rear license plate and license plate holder / lens assembly.
2. Carefully remove the four existing cage nuts.
3. Install license plate holder / lens assembly.
4. Install replacement license plate fasteners (Part No: N 909 460 01) into existing holes (Figure 1). Make sure the fasteners are flush with the license plate holder.

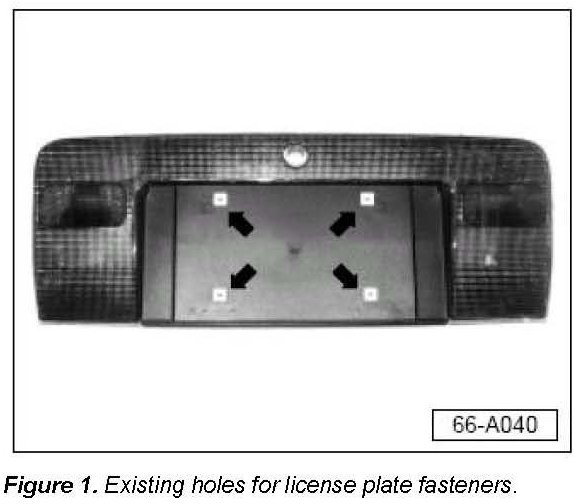

Figure 1:
1. Install license plate using new screws Part No: N 909 457 01.
2. If a license plate trim plate is not installed along with the license plate, add an approximately 1 mm thick washer to the installation screws to prevent screws from bottoming out. Do not overtighten license plate screws.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
