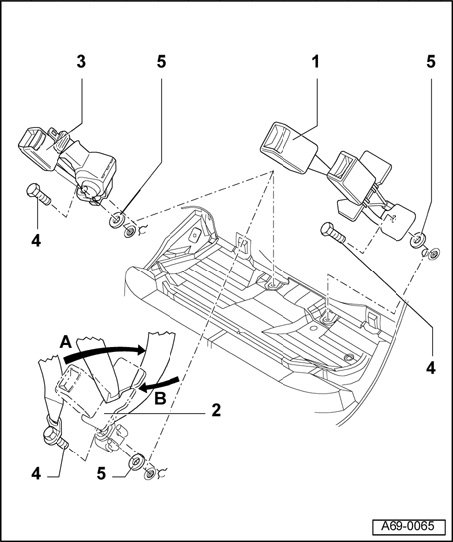

Floor Panel, Center Attachment Points

Floor Panel, Center Attachment Points







- Remove rear seat bench.
- Remove bolt - 4 - (1x).
- Seal - 5 - must always be replaced.
- When installing, make sure buckle and/or lap belt engage(s) in anti-twist projections.
- Narrow side of buckle and/or lap belt must face in direction of travel.

1 - Buckle
2 - Lap belt
3 - Lap belt with retractor
4 - Bolt
- Tightening torque: 55 Nm (41 ft lb)
- Only use genuine bolts
5 - Seal
- Always replace.
