Guide For Side Curtain Protection Airbag, C-Pillar, Removing and Installing

Guide For Side Curtain Protection Airbag, C-pillar, Removing And Installing

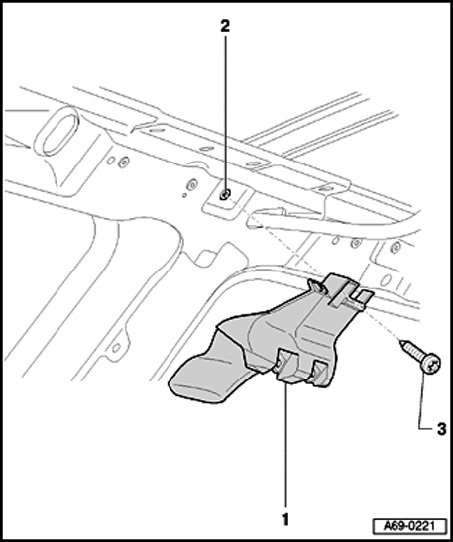

1 - Guide for side curtain airbag
- Remove side curtain airbag.
- Remove screw - 3 - (1x).
2 - Threaded insert (1x)
- Always clean threaded holes for screws (e.g. using a tap)
- For loose (threaded) inserts, tighten inserts using pliers.
3 - Screw
- Tightening torque: 3.5 Nm (31 in.lb)
- Self-locking
- Always replace
