Guide For Side Curtain Protection Airbag, B-Pillar, Removing and Installing

Guide For Side Curtain Protection Airbag, B-pillar, Removing And Installing

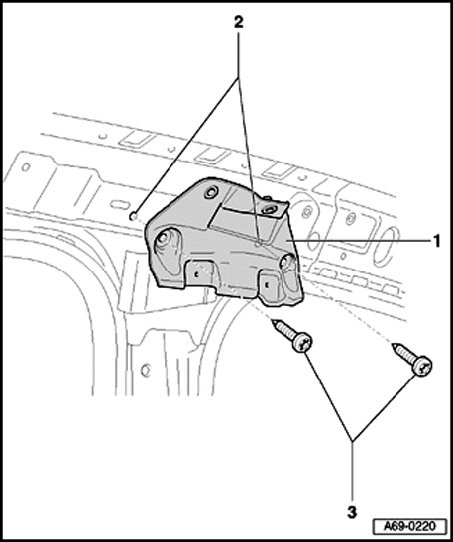

1 - Guide for side curtain airbag
- Remove side curtain airbag
- Remove bolts - 3 - (2x)
2 - Threaded inserts (2x)
- Always clean threaded holes for screws (e.g. using a tap)
- For loose (threaded) inserts, tighten inserts using pliers.
3 - Screws (2x)
- Tightening torque: 5.5 Nm (49 in.lb)
- Self-locking
- Always replace.
