Front Coolant Pipe, Removing and Installing

Front coolant pipe, removing and installing





Special Tools and Equipment

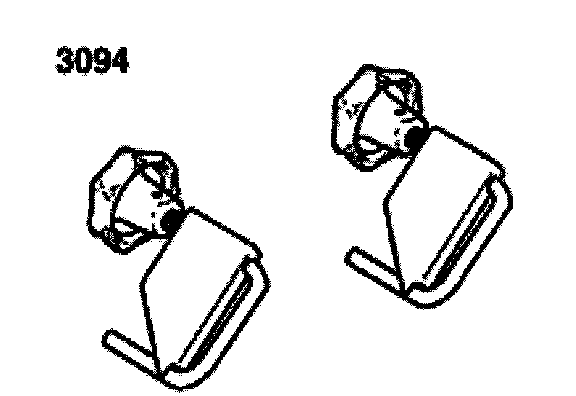

^ 3094 hose clamps
^ Oil receptacle

Removing

Note: All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.

- Remove intake manifold, Refer to Intake Manifold, Service and Repair.
- Toothed belt, removing, Refer to Timing Belt,Service and Repair.
- Remove camshaft gears from left cylinder head.

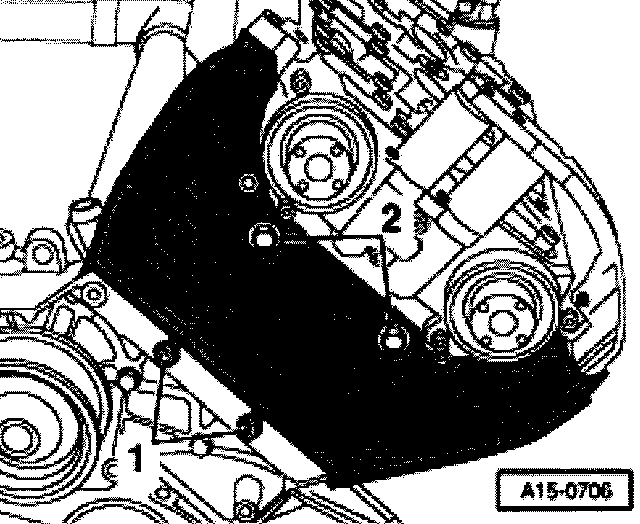

- Unscrew bolts -1- and -2- and remove toothed belt guard at rear left.
- Place oil pan underneath.





- Clamp off both hoses at hydraulic fluid supply line using 3094 hose clamps.
- Disconnect both hydraulic hoses from supply line.
- Disconnect coolant hoses at front coolant pipe.

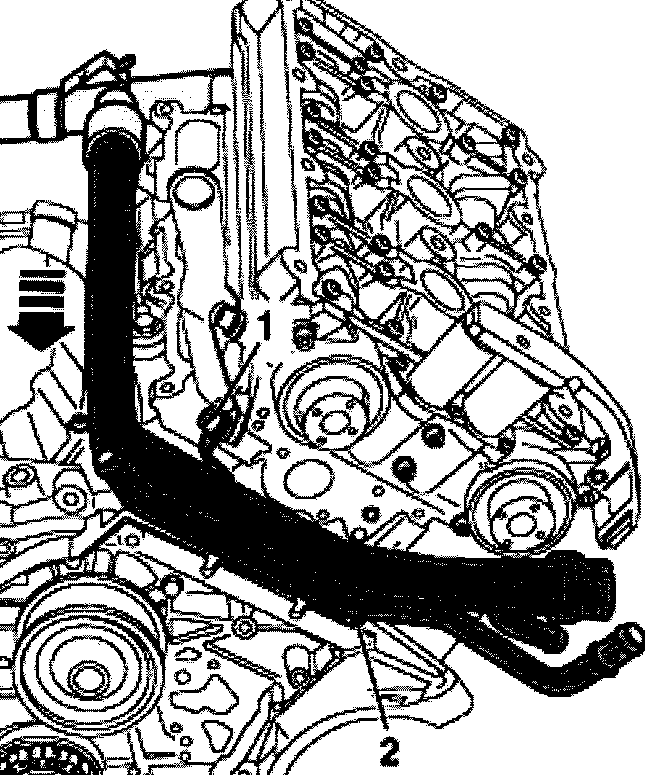

- Remove bolts -1- and -2- and move lines at coolant pipe to side.
- Remove coolant pipe toward front (arrow).

Installing
Installation is reverse of removal, noting the following:

Notes:
^ Secure all hose connections using hose clamps appropriate for the model type, Refer to Parts Supplier
^ Replace O-rings.

- Clean and/or smooth O-ring sealing surface before installing.
- Coat new O-ring with G12 and slide onto coolant pipe.
- Slide front coolant pipe into the hole at rear coolant pipe.
- Install intake manifold, Refer to Intake Manifold, Service and Repair.
- Install toothed belt (adjust timing),Refer to Timing Belt,Service and Repair.
- Fill up power steering fluid and bleed steering system:

Component Tightening Torques (Part 2 Of 6):

Tightening torques
