Ribbed Belt For Vane Pump, Generator and A/C System, Overview

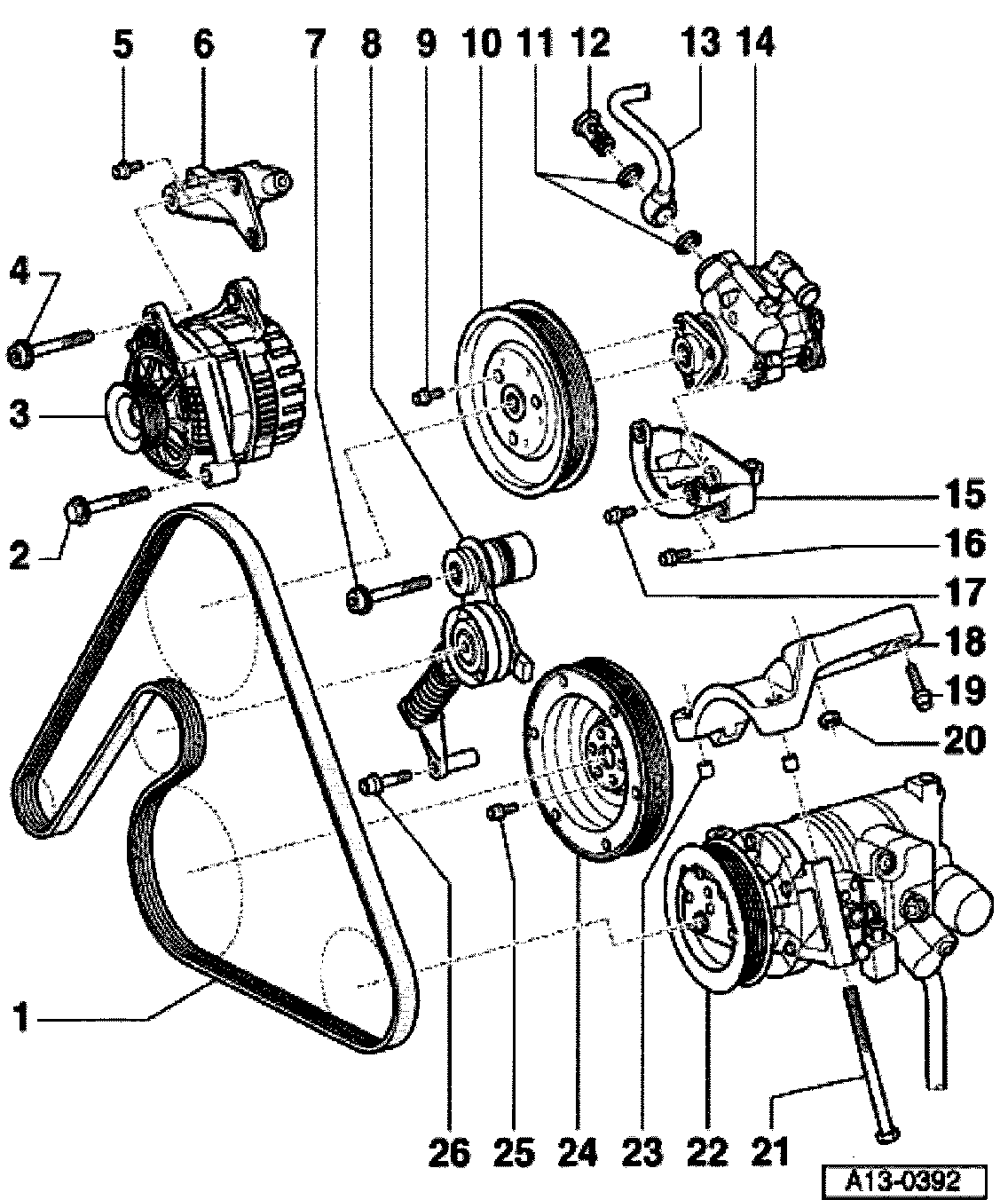

Ribbed belt for vane pump, generator and A/C system

Note: Before removing ribbed belt, note direction of rotation with chalk or felt-tip marker. Reversing the direction of rotation of a run-in belt can destroy the belt.

1. Ribbed belt
^ Check for wear
2. 23 Nm
3. Generator
4. 45 Nm
5. 23 Nm
6. Bracket for generator
7. 40 Nm
8. Ribbed belt tensioner
9. 23 Nm
10. Belt pulley for power steering pump
^ Use 3212 spanner wrench to counterhold when removing and installing
^ Identification: Front
11. Seal
^ Always replace
12. Banjo fitting -47 Nm
13. Pressurized line to power steering
14. Power steering vane pump
^ Removing and installing:
15. Bracket for power steering pump
16. 23 Nm
17. 23 Nm
18. Bracket for A/C compressor
19. 23 Nm
20. 23 Nm
21. 25 Nm
22. A/C compressor
^ Do not unscrew or disconnect refrigerant lines
^ After removing, secure compressor to chassis (i.e. with wire) Do not hang on refrigerant lines
23. Socket
^ for A/C compressor
^ 2x
24. Harmonic balancer
^ Version dependent with/without thrust washer between harmonic balancer and toothed belt gear
^ Removing and installing, Refer to Harmonic Balancer - Crankshaft Pulley, Service and Repair.
25. 23 Nm
26. 23 Nm
