Vehicles With Front Wheel Drive

Center And Rear Muffler, Separating
- A separating point has been provided in the separating pipe for individual replacement of the center or rear muffler.
- Separating point is marked by a depression around the circumference of the exhaust pipe.

Special Tools and Equipment







- VAG1523A body repair saw
- Protective glasses


WARNING!
Wear protective glasses.

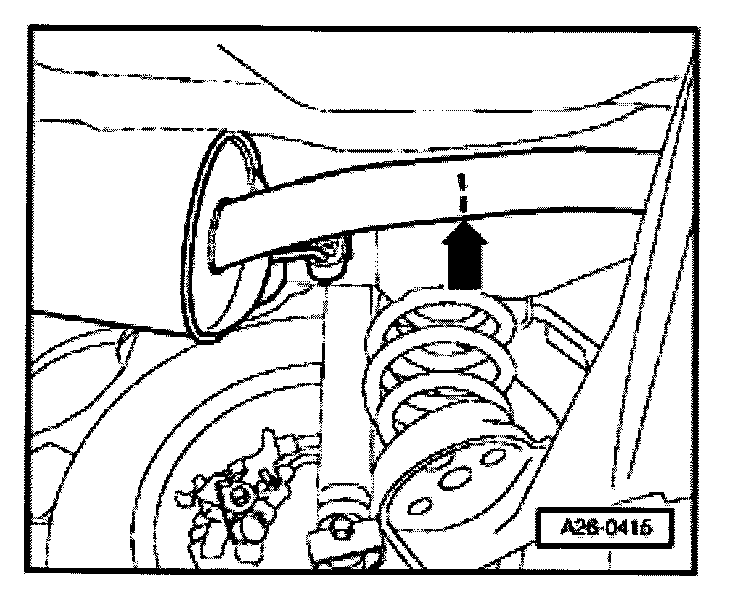

- Using VAG1523A body repair saw, cut exhaust pipe at separating point (arrow) at right angle.

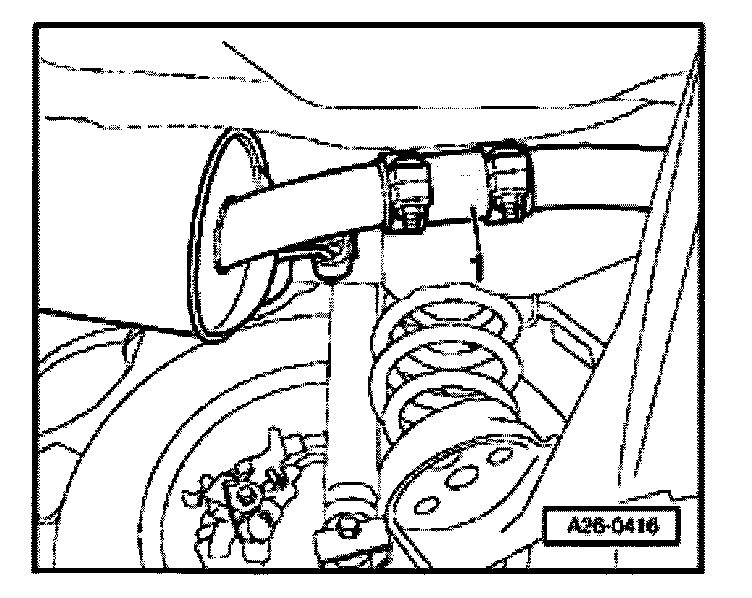

- When installing, center double clamp -1- on separation point.
- Installed position of double clamp.
- Align exhaust system tension-free.
- Tighten double clamp bolts evenly to 40 Nm.
