Exhaust Manifold: Service and Repair

Left Exhaust Manifold, Removing And Installing

Removing
- Remove left front exhaust pipe with catalytic converter.

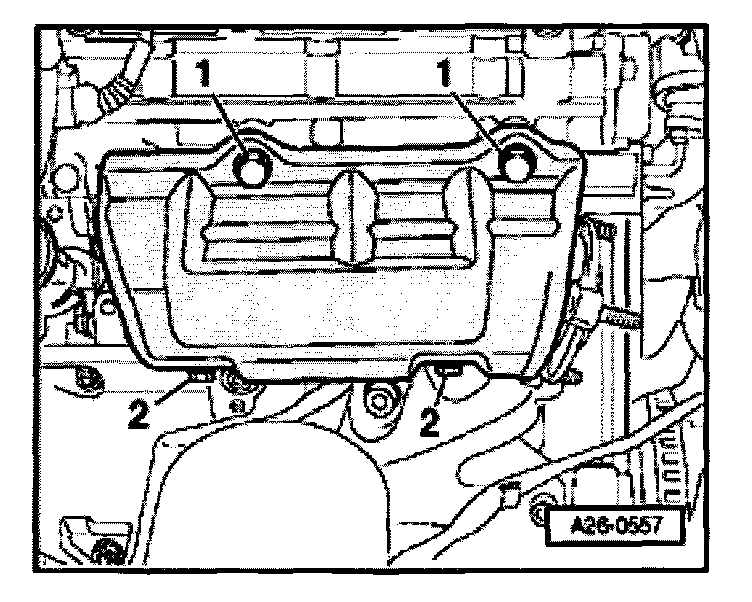

- Remove threaded connection -1- at heat shield which is accessible from top
- Unscrew threaded connection -2- which is accessible from bottom and remove heat shield.

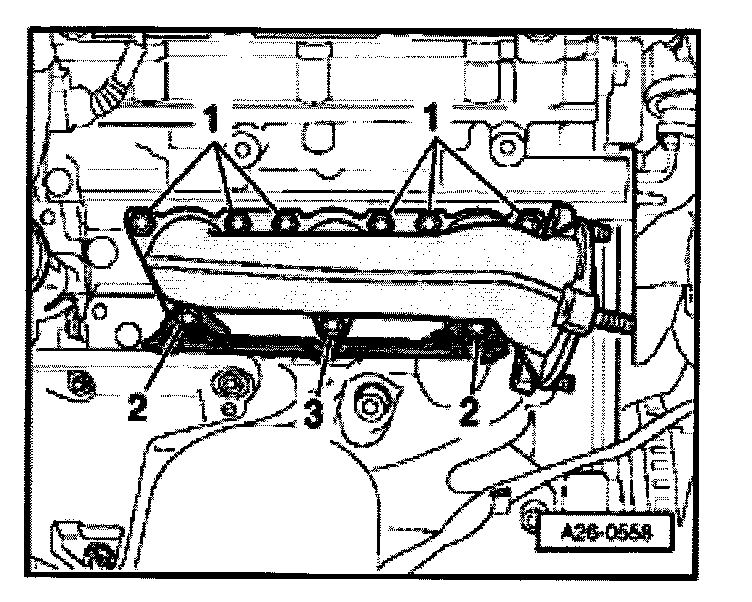

- Unscrew threaded connection -1- of exhaust manifold which is accessible from top.
- Remove nuts -2- from bottom and remove heat shield bracket.
- Remove nut -3- and remove exhaust manifold.

Installing
Installation is reverse of removal, noting the following:


NOTE: Replace gaskets and self-locking nuts.


- Install left front exhaust pipe with catalytic converter.
- Align exhaust system tension-free.

Tightening torque

Component Nm
Exhaust manifold to cylinder head 25
Heat shield for exhaust manifold M6 10
M8 25

Right Exhaust Manifold, Removing And Installing

Removing

- Remove right front exhaust pipe with catalytic converter.

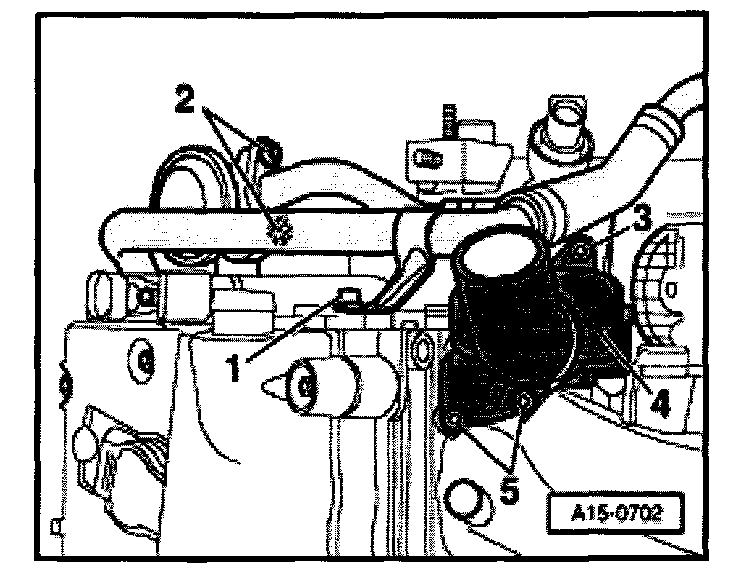

- Remove bolts -1- and -2- at lines of secondary air injection.


NOTE: The resonator -4- with bolts -3- and -5- remains installed.







- Remove bolts -1- and -3-.
- Disconnect hose -4- from line of secondary air injection.

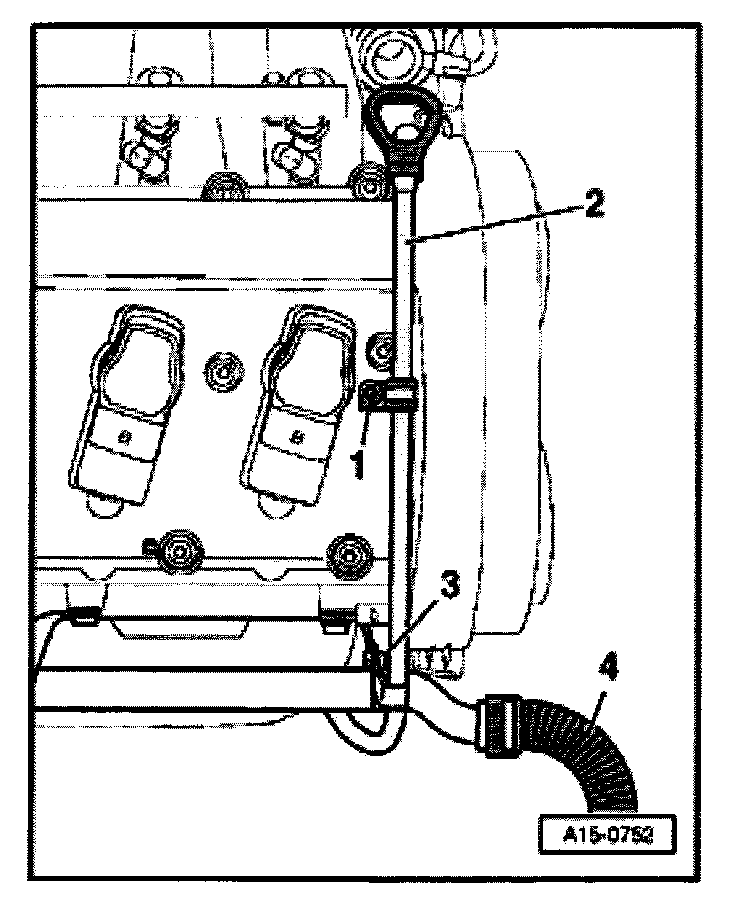

- Pull out guide tube for oil dipstick -2- toward top from the oil pan (upper part) and swing it forward.

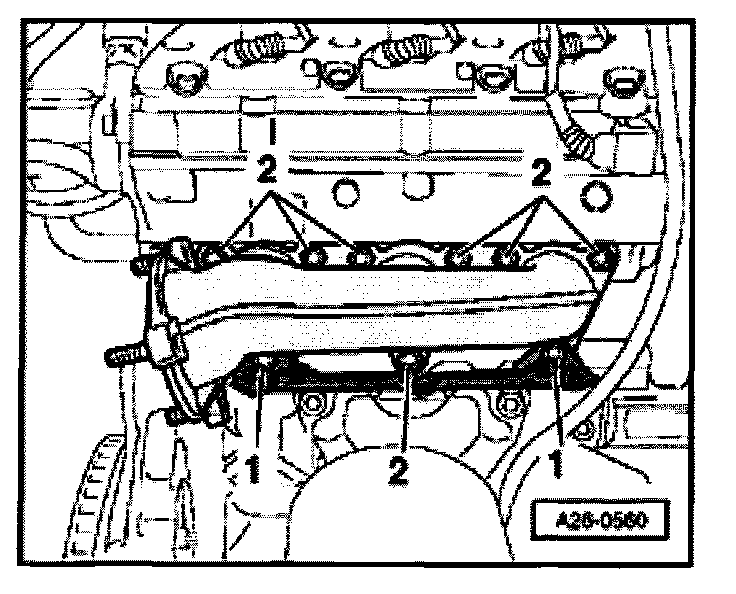

- Remove upper mounting bolts -1-.

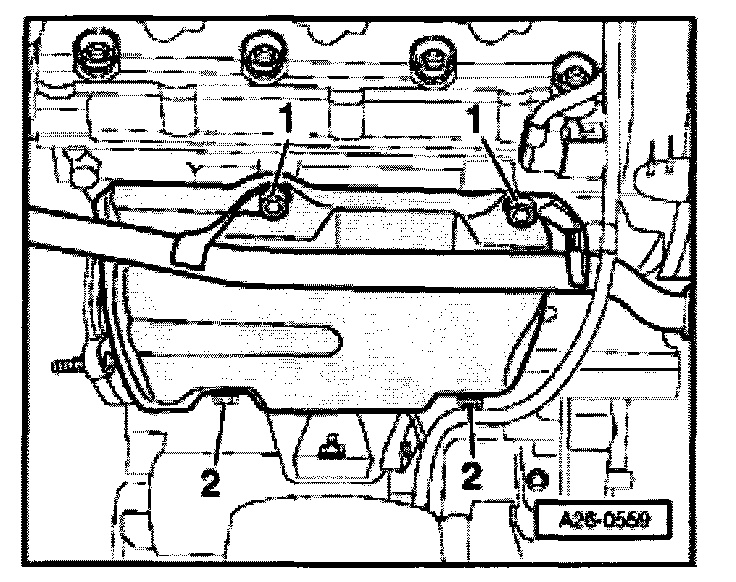

- Remove bolts -2- and remove heat shield bracket.







- Unscrew nuts -1- and remove heat shield.
- Unscrew nuts -2- and remove exhaust manifold.

Installing
Installation is reverse of removal, noting the following:


NOTE: Replace gaskets and self-locking nuts.


- Replace O-ring at guide tube for oil dipstick and insert guide tube into hole in oil pan (upper part).
- Install right front exhaust pipe with catalytic converter.
- Align exhaust system tension-free.

Tightening torque

Component Nm
Exhaust manifold to cylinder head 25
Heat shield to heat shield bracket 10
Tube for Secondary Air Injection M6 10
M8 25
Guide tube for oil dipstick to
line for secondary air injection 10
