Motor For Seat Height Adjustment, Removing and Installing

Motor For Seat Height Adjustment, Removing And Installing

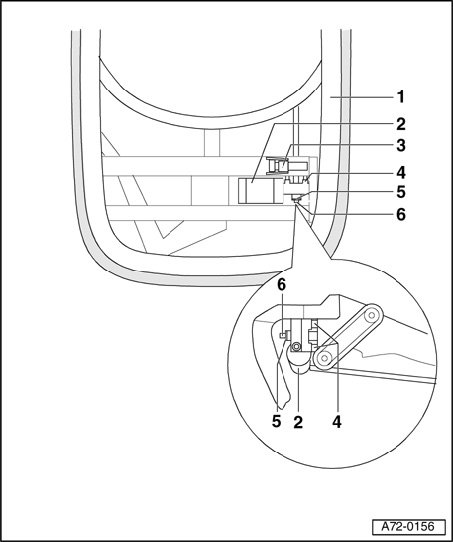

1 - Seat frame
2 - Motor for seat height adjustment

Removing
- Move seat fully up.
- Remove seat.
- Remove seat bottom.







- Disconnect harness connector - 3 -.
- Disconnect connector housing - 3 - from seat frame.
- Using a screwdriver lift locking washer - 5 - from shaft - 6 -.
- Remove motor - 2 -.

Installing

NOTE: Make sure that bushings - 4 - are correctly seated in seat frame.

3 - Harness connector for motor
4 - Bushings (2x)
5 - Locking washer
6 - Shaft
