Front Fender Liner: Service and Repair

Wheelhousing Liners, Removing And Installing

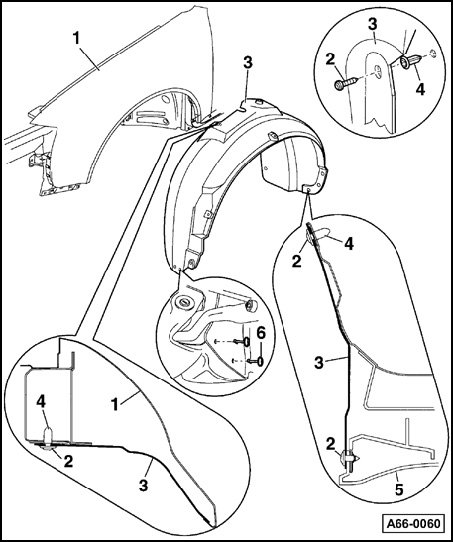

Wheelhousing liner, front







1 - Fender
2 - Torx (R) bolt(T25)
- 1.5 Nm (13 in.lb)
3 - Wheelhousing liner, front
- Remove front wheel prior to removing wheelhousing liner
Removing:
- Release clamping pins - 6 -.
- Remove Torx (R) bolts - 2 - (Qty. 3).
- Disengage wheelhousing liner from fender and pull out in downward direction.
4 - Expanding nuts
- Qty. 13
5 - Sill panel trim

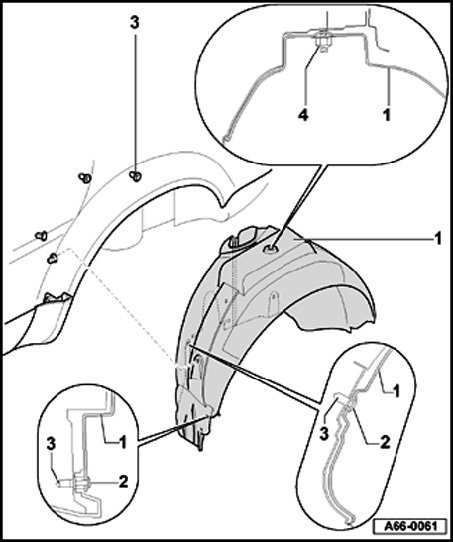

Wheelhousing liner, rear







1 - Rear wheelhousing liner
- Remove rear wheel before removing wheelhousing liner
- Remove screws - 2 - and cap nut - 4 -.
- Remove wheelhousing liner and pull out in downward direction.
2 - Self-tapping screw
- 1.5 Nm (13 in.lb)
3 - Expanding nut
4 - Cap nut
- 1.5 Nm (13 in.lb)
