Blower Motor Module, Removal and Installation

Control Module For Fresh Air Blower -J126-, Removing And Installing

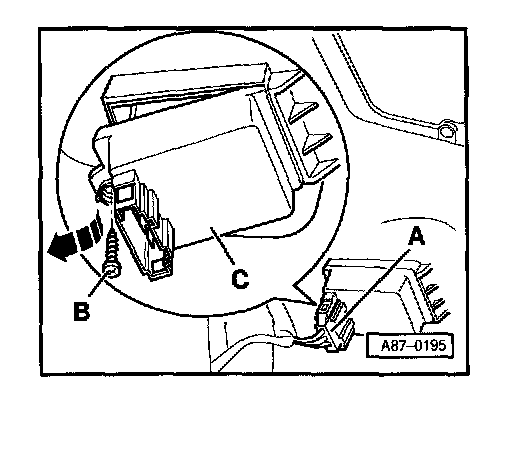

- Remove glove box







- Disconnect harness connector -A-.
- Remove bolt -B-.
- Remove control module for fresh air blower -C-.
