Spray Jets, Removing and Installing

Spray Jets, Removing And Installing

Removing

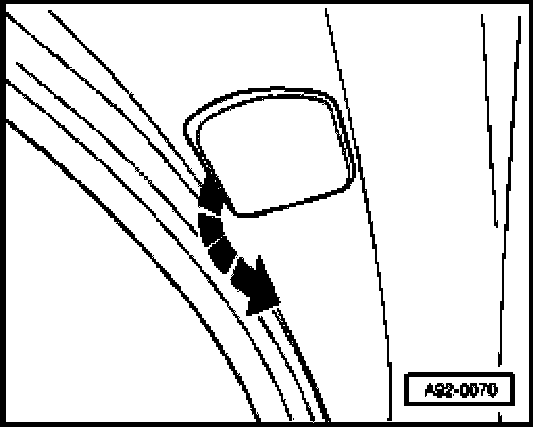

- Unclip base of spray jet from bottom of hood -arrow-.
- Pull water hose off unclipped spray jet.
- If installed, disconnect electrical harness connector.

Installing
Install in reverse order, paying attention to the following:

NOTE: Water hose must audibly engage in connection of spray jet.
