Spray Jets, Adjusting

Special tools and equipment

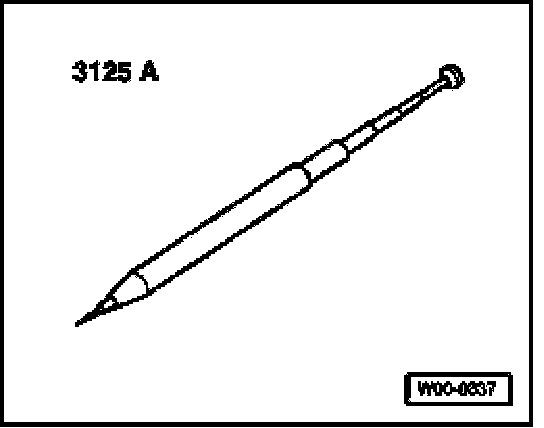

- Adjusting tool for washer jet 3125 A with needle 3125 / 5A

NOTE: The adjustment dimensions indicate the values for a moving vehicle, i.e. the spray from the jets is slightly offset when the vehicle is stationary.

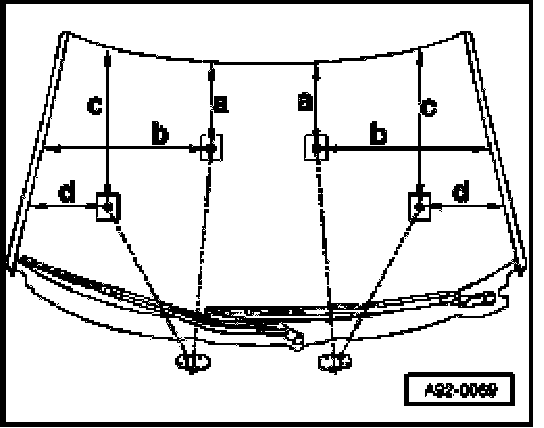

- Mark four points on windshield with water-soluble ink:
- Dimension a = 250 to 275 mm
- Dimension b = 465 to 490 mm
- Dimension c = 270 to 415 mm
- Dimension d = 140 to 225 mm
- Use adjusting tool to aim individual spray jets at points marked.
