Drive Plate For Automatic Transmission 01V

Drive plate for automatic transmission 01V:
Removing
^ Transmission removed

WARNING: Turning of the engine must only occur in direction of engine rotation (clockwise) at the crankshaft.

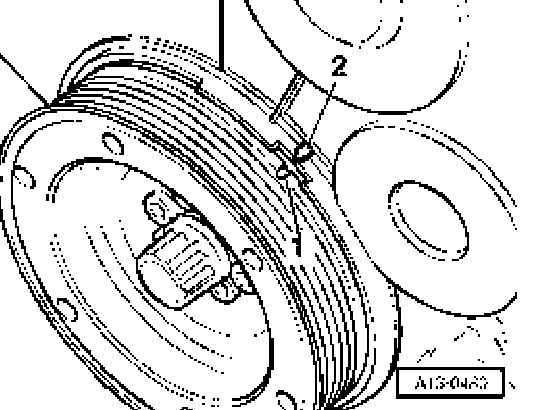

^ Turn crankshaft via central bolt of toothed belt gear in direction of engine rotation to TDC Cyl. 3 marking.





^ Notch -1- lines up with marking -2
^ If installed, disconnect electrical harness connector at after-run coolant pump.
^ Unscrew sealing plug of TDC mark at cylinder block.

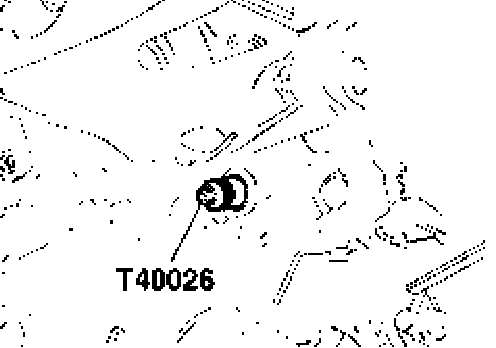

^ Thread T40026 locking pin into the hole of the removed sealing plug and tighten.

Note: Slightly turn crankshaft back and forth to do so.

^ Mark drive plate to engine.
^ Remove drive plate.

Installing
Installation is reverse of removal:

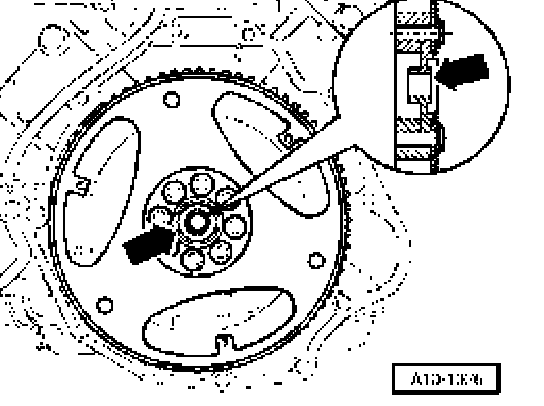

^ Drive plate is bolted to the crankshaft with a centering bushing (arrow).
^ Replace bolts and tighten.
^ Remove T10026 alignment bolt and thread sealing plug of TDC marking with new O-ring into cylinder block.





Tightening torques
1) 90°= one quarter-turn
2) Replace bolts.
3) 180° = one half-turn
