Front Coolant Line, Removing and Installing

Front coolant line, removing and installing
Special Tools and Equipment

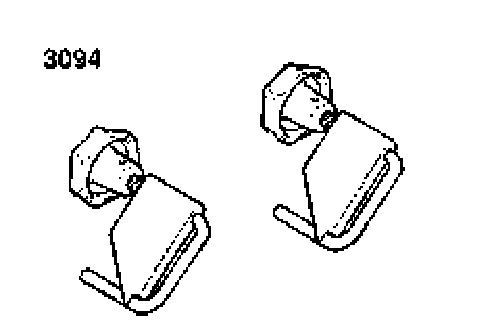

^ 3094 hose clamps
^ Oil receptacle

Removing

Note: All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.

^ Remove intake manifold.
^ Toothed belt, removing, Refer to Timing Belt, Service and Repair.
^ Remove camshaft gears from left cylinder head.

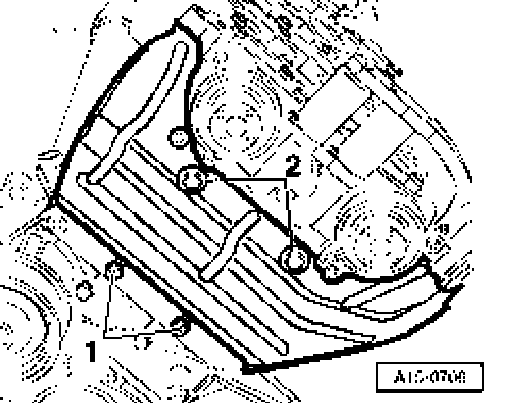

^ Unscrew bolts -1- and -2- and remove toothed belt guard at rear left.
^ Place oil pan underneath.

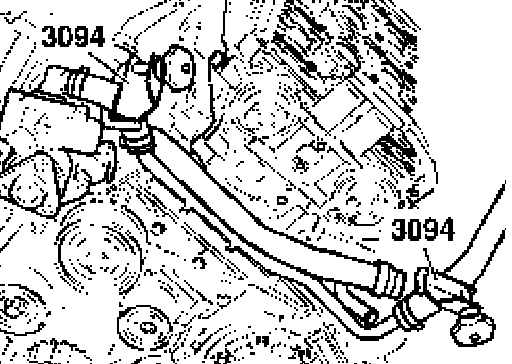

^ Clamp off two hoses at hydraulic fluid supply line using 3094 hose clamps.
^ Disconnect both hydraulic hoses from supply line.
^ Disconnect coolant hoses at front coolant pipe.

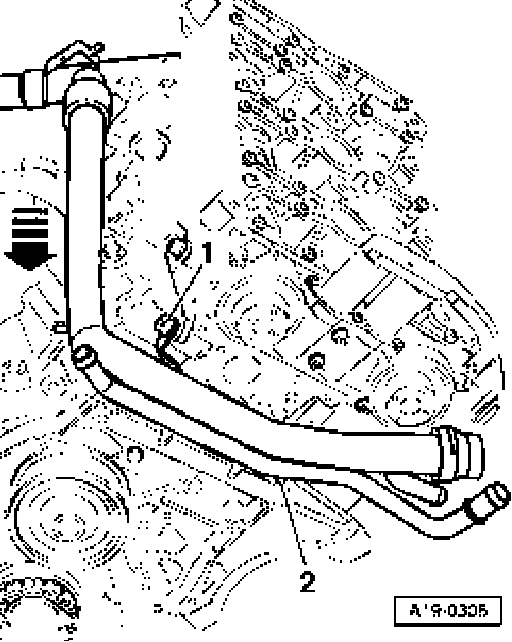

^ Remove bolts -1- and -2- and move lines at coolant pipe to side.
^ Remove coolant pipe toward front (arrow).

Installing
Installation is reverse of removal:

Note: Secure all hose connections using hose clamps appropriate for the model type:

Refer to Parts Supplier
^ Replace O-rings.
^ Clean and/or smooth O-ring sealing surface before installing.
^ Coat new O-ring with G12 and slide onto coolant pipe.
^ Slide front coolant pipe into the hole at rear coolant pipe.
^ Install intake manifold.
^ Install toothed belt (adjust timing).
^ Fill up power steering fluid and bleed steering system:





Tightening torques
1) Replace bolts.
